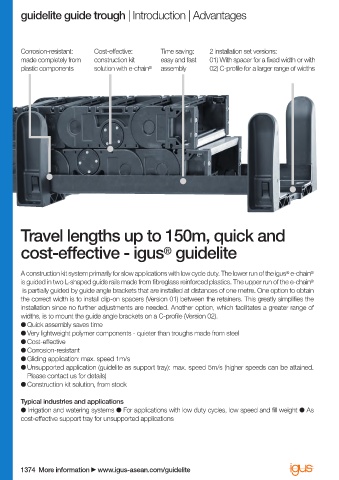

Page 1376 - IGUS ECS CATALOG

guidelite guide trough | Introduction | Advantages

Corrosion-resistant: Cost-eff ective: Time saving: 2 installation set versions:
made completely from construction kit easy and fast 01) With spacer for a fi xed width or with
plastic components solution with e-chain ® assembly 02) C-profi le for a larger range of widths

Travel lengths up to 150m, quick and

®
cost-eff ective - igus guidelite

®
A construction kit system primarily for slow applications with low cycle duty. The lower run of the igus e-chain
®
is guided in two L-shaped guide rails made from fi breglass reinforced plastics. The upper run of the e-chain ®
is partially guided by guide angle brackets that are installed at distances of one metre. One option to obtain
the correct width is to install clip-on spacers (Version 01) between the retainers. This greatly simplifi es the
installation since no further adjustments are needed. Another option, which facilitates a greater range of
widths, is to mount the guide angle brackets on a C-profi le (Version 02).
● Quick assembly saves time
● Very lightweight polymer components - quieter than troughs made from steel
● Cost-eff ective
● Corrosion-resistant
● Gliding application: max. speed 1m/s
● Unsupported application (guidelite as support tray): max. speed 5m/s (higher speeds can be attained.
Please contact us for details)
● Construction kit solution, from stock

Typical industries and applications
● Irrigation and watering systems ● For applications with low duty cycles, low speed and fi ll weight ● As
cost-eff ective support tray for unsupported applications

1374 More information www.igus-asean.com/guidelite
