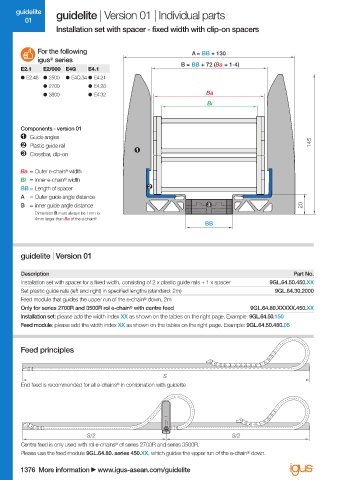

guidelite guidelite | Version 01 | Individual parts
01
Installation set with spacer - fixed width with clip-on spacers

For the following A = BB + 130
®
igus series
B = BB + 72 (Ba + 1-4)
E2.1 E2/000 E4Q E4.1
● E2.48 ● 2500 ● E4Q.34 ● E4.21
● 2700 ● E4.28
● 3500 ● E4.32 Ba
Bi

Components - version 01
Guide angles
Plastic guide rail 145
Crossbar, clip-on

Ba = Outer e-chain ® width
Bi = Inner e-chain ® width
BB = Length of spacer
A = Outer guide angle distance
B = inner guide angle distance 20
Dimension B must always be 1mm to
4mm larger than Ba of the e-chain ® .
BB

guidelite | Version 01

Description Part No.
Installation set with spacer for a fi xed width, consisting of 2 x plastic guide rails + 1 x spacer 9GL.64.50.450.XX
Set plastic guide rails (left and right) in specifi ed lengths (standard: 2m) 9GL.64.30.2000
Feed module that guides the upper run of the e-chain ® down, 2m
Only for series 2700R and 3500R rol e-chain ® with centre feed 9GL.64.80.XXXXX.450.XX
Installation set: please add the width index XX as shown on the tables on the right page. Example: 9GL.64.50.150
Feed module: please add the width index XX as shown on the tables on the right page. Example: 9GL.64.50.450.05

Feed principles

S
End feed is recommended for all e-chains ® in combination with guidelite

S/2 S/2
Centre feed is only used with rol e-chains ® of series 2700R and series 3500R.
Please use the feed module 9GL.64.80. series 450.XX, which guides the upper run of the e-chain ® down.
1376 More information www.igus-asean.com/guidelite
