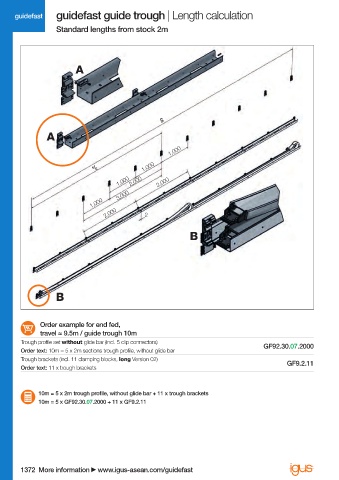

guidefast guidefast guide trough | Length calculation
Standard lengths from stock 2m

A

S
A
1,000
1,000
S / 2
1,000 2,000 2,000
3,000
1,000
2,000 2

B

B

Order example for end fed,
travel ≈ 9.5m / guide trough 10m
Trough profi le set without glide bar (incl. 5 clip connectors)
GF92.30.07.2000
Order text: 10m = 5 x 2m sections trough profi le, without glide bar
Trough brackets (incl. 11 clamping blocks, long Version 02)
GF9.2.11
Order text: 11 x trough brackets

10m = 5 x 2m trough profi le, without glide bar + 11 x trough brackets
10m = 5 x GF92.30.07.2000 + 11 x GF9.2.11

1372 More information www.igus-asean.com/guidefast
