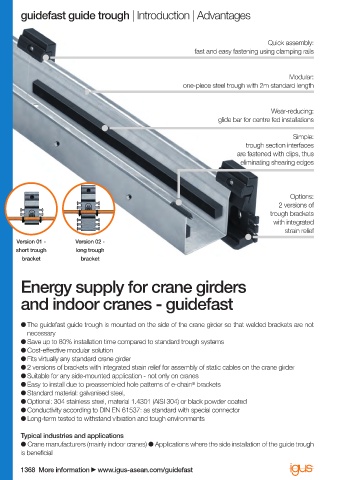

guidefast guide trough | Introduction | Advantages

Quick assembly:
fast and easy fastening using clamping rails

Modular:
one-piece steel trough with 2m standard length

Wear-reducing:
glide bar for centre fed installations
Simple:
trough section interfaces
are fastened with clips, thus
eliminating shearing edges

Options:
2 versions of
trough brackets
with integrated
strain relief
Version 01 - Version 02 -
short trough long trough
bracket bracket

Energy supply for crane girders

and indoor cranes - guidefast

● The guidefast guide trough is mounted on the side of the crane girder so that welded brackets are not
necessary
● Save up to 80% installation time compared to standard trough systems
● Cost-eff ective modular solution
● Fits virtually any standard crane girder
● 2 versions of brackets with integrated strain relief for assembly of static cables on the crane girder
● Suitable for any side-mounted application - not only on cranes
● Easy to install due to preassembled hole patterns of e-chain brackets
®
● Standard material: galvanised steel,
● Optional: 304 stainless steel, material 1.4301 (AiSI 304) or black powder coated
● Conductivity according to DIN EN 61537: as standard with special connector
● Long-term tested to withstand vibration and tough environments

Typical industries and applications
● Crane manufacturers (mainly indoor cranes) ● Applications where the side installation of the guide trough
is benefi cial
1368 More information www.igus-asean.com/guidefast
