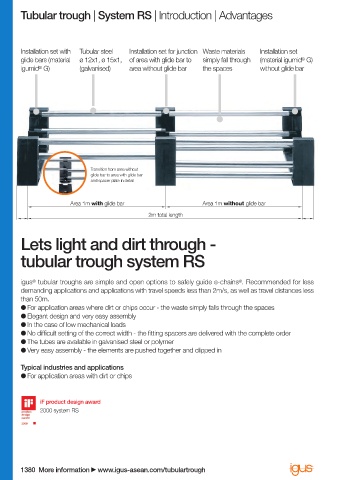

Tubular trough | System RS | Introduction | Advantages

Installation set with Tubular steel Installation set for junction Waste materials Installation set
glide bars (material ø 12x1, ø 15x1, of area with glide bar to simply fall through (material igumid G)
®
igumid G) (galvanised) area without glide bar the spaces without glide bar
®

Transition from area without
glide bar to area with glide bar
and spacer plate in detail

Area 1m with glide bar Area 1m without glide bar
2m total length

Lets light and dirt through -

tubular trough system RS

igus tubular troughs are simple and open options to safely guide e-chains . Recommended for less
®
®
demanding applications and applications with travel speeds less than 2m/s, as well as travel distances less
than 50m.
● For application areas where dirt or chips occur - the waste simply falls through the spaces
● Elegant design and very easy assembly
● In the case of low mechanical loads
● No diffi cult setting of the correct width - the fi tting spacers are delivered with the complete order
● The tubes are available in galvanised steel or polymer
● Very easy assembly - the elements are pushed together and clipped in

Typical industries and applications
● For application areas with dirt or chips

iF product design award
2000 system RS

1380 More information www.igus-asean.com/tubulartrough
