P. 1386

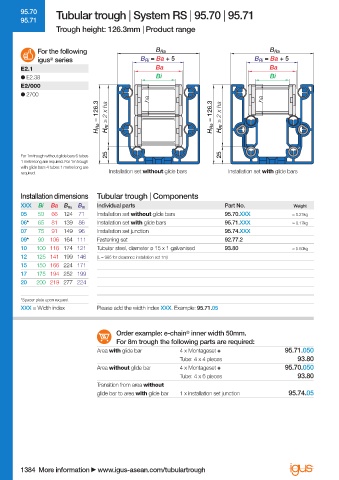

95.70    Tubular trough | System RS | 95.70 | 95.71
                       95.71
                                Trough height: 126.3mm | Product range


                            For the following            B Ra                         B Ra
                            igus  series             B Ri  = Ba + 5               B Ri  = Ba + 5
                               ®
                       E2.1                              Ba                           Ba
                       ●  E2.38                          Bi                           Bi
                       E2/000
                       ●  2700                          ha                          ha
                                           H Ra  = 126.3   H Ri  ≥ 2 x ha  H Ra  = 126.3   H Ri  ≥ 2 x ha






                                             25                           25
                       For 1m trough without glide bars 6 tubes
                       1 metre long are required. For 1m trough
                       with glide bars 4 tubes 1 metre long are
                       required.              Installation set without glide bars  Installation set with glide bars
                       Installation dimensions  Tubular trough | Components
                       XXX  Bi  Ba  B Ra  B Ri  Individual parts          Part No.          Weight
                       05   50  66  124  71  Installation set without glide bars  95.70.XXX  ≈ 0.21kg
                       06*  65  81  139  86  Installation set with glide bars  95.71.XXX   ≈ 0.17kg
                       07   75  91  149  96  Installation set junction    95.74.XXX
                       09*  90  106 164 111  Fastening set                92.77.2
                       10  100 116 174 121  Tubular steel, diameter ø 15 x 1 galvanised  93.80  ≈ 0.50kg
                       12  125 141 199 146  (L = 985 for clearance installation set 1m)
                       15  150 166 224 171
                       17  175 194 252 199
                       20  200 219 277 224

                       *Spacer plate upon request
                       XXX = Width index   Please add the width index XXX. Example: 95.71.05


                                               Order example: e-chain  inner width 50mm.
                                                                 ®
                                               For 8m trough the following parts are required:
                                           Area with glide bar  4 x Montageset +          95.71.050
                                                               Tube: 4 x 4 pieces            93.80
                                           Area without glide bar  4 x Montageset +       95.70.050
                                                               Tube: 4 x 6 pieces            93.80
                                           Transition from area without
                                           glide bar to area with glide bar  1 x installation set junction  95.74.05










                       1384 More information   www.igus-asean.com/tubulartrough
