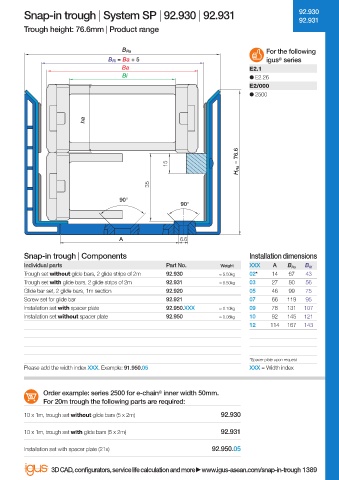

Snap-in trough | System SP | 92.930 | 92.931 92.930
92.931
Trough height: 76.6mm | Product range

B Ra For the following
B Ri = Ba + 5 igus series
®
Ba E2.1
Bi ● E2.26
E2/000
● 2500

ha

H Ra = 76.6
15

35
90°
90°

A 6.6

Snap-in trough | Components Installation dimensions
Individual parts Part No. Weight XXX A B Ra B Ri
Trough set without glide bars, 2 glide strips of 2m 92.930 ≈ 5.50kg 02* 14 67 43
Trough set with glide bars, 2 glide strips of 2m 92.931 ≈ 6.50kg 03 27 80 56
Glide bar set, 2 glide bars, 1m section 92.920 05 46 99 75
Screw set for glide bar 92.921 07 66 119 95
Installation set with spacer plate 92.950.XXX ≈ 0.10kg 09 78 131 107
Installation set without spacer plate 92.950 ≈ 0.08kg 10 92 145 121
12 114 167 143

*Spacer plate upon request
Please add the width index XXX. Example: 91.950.05 XXX = Width index

Order example: series 2500 for e-chain inner width 50mm.
®
For 20m trough the following parts are required:
10 x 1m, trough set without glide bars (5 x 2m) 92.930
10 x 1m, trough set with glide bars (5 x 2m) 92.931

Installation set with spacer plate (21x) 92.950.05

3D CAD, confi gurators, service life calculation and more www.igus-asean.com/snap-in-trough 1389
