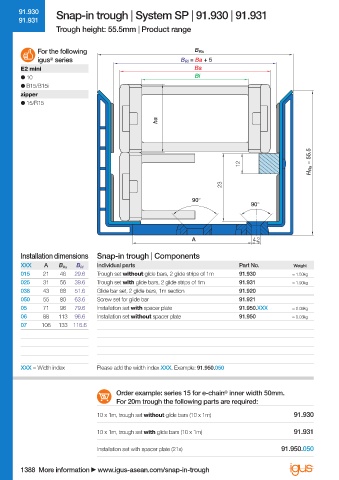

91.930 Snap-in trough | System SP | 91.930 | 91.931
91.931
Trough height: 55.5mm | Product range

For the following B Ra
igus series B Ri = Ba + 5
®
E2 mini Ba
● 10 Bi
● B15/B15i
zipper
● 15/R15

ha

H Ra = 55.5
12

23
90°
90°

A 4.2

Installation dimensions Snap-in trough | Components
XXX A B Ra B Ri Individual parts Part No. Weight
015 21 46 29.6 Trough set without glide bars, 2 glide strips of 1m 91.930 ≈ 1.50kg
025 31 56 39.6 Trough set with glide bars, 2 glide strips of 1m 91.931 ≈ 1.90kg
038 43 68 51.6 Glide bar set, 2 glide bars, 1m section 91.920
050 55 80 63.6 Screw set for glide bar 91.921
05 71 96 79.6 Installation set with spacer plate 91.950.XXX ≈ 0.05kg
06 88 113 96.6 Installation set without spacer plate 91.950 ≈ 0.03kg
07 108 133 116.6

XXX = Width index Please add the width index XXX. Example: 91.950.050

Order example: series 15 for e-chain inner width 50mm.
®
For 20m trough the following parts are required:
10 x 1m, trough set without glide bars (10 x 1m) 91.930
10 x 1m, trough set with glide bars (10 x 1m) 91.931

Installation set with spacer plate (21x) 91.950.050

1388 More information www.igus-asean.com/snap-in-trough
