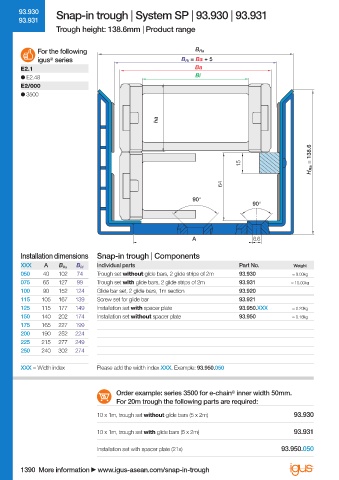

93.930 Snap-in trough | System SP | 93.930 | 93.931
93.931
Trough height: 138.6mm | Product range

For the following B Ra
igus series B Ri = Ba + 5
®
E2.1 Ba
● E2.48 Bi
E2/000
● 3500

ha

H Ra = 138.6
15

64
90°
90°

A 6.6

Installation dimensions Snap-in trough | Components
XXX A B Ra B Ri Individual parts Part No. Weight
050 40 102 74 Trough set without glide bars, 2 glide strips of 2m 93.930 ≈ 9.00kg
075 65 127 99 Trough set with glide bars, 2 glide strips of 2m 93.931 ≈ 10.00kg
100 90 152 124 Glide bar set, 2 glide bars, 1m section 93.920
115 105 167 139 Screw set for glide bar 93.921
125 115 177 149 Installation set with spacer plate 93.950.XXX ≈ 0.20kg
150 140 202 174 Installation set without spacer plate 93.950 ≈ 0.16kg
175 165 227 199
200 190 252 224
225 215 277 249
250 240 302 274
XXX = Width index Please add the width index XXX. Example: 93.950.050

Order example: series 3500 for e-chain inner width 50mm.
®
For 20m trough the following parts are required:
10 x 1m, trough set without glide bars (5 x 2m) 93.930
10 x 1m, trough set with glide bars (5 x 2m) 93.931

Installation set with spacer plate (21x) 93.950.050

1390 More information www.igus-asean.com/snap-in-trough
