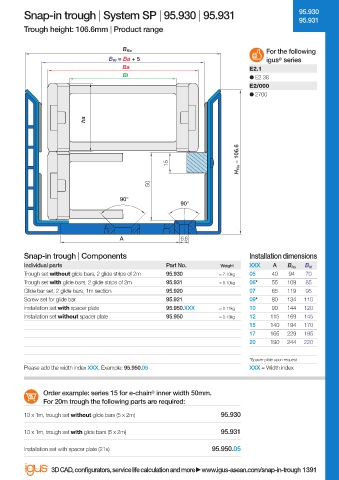

Snap-in trough | System SP | 95.930 | 95.931 95.930
95.931
Trough height: 106.6mm | Product range

For the following
B Ra
B Ri = Ba + 5 igus series
®
Ba
E2.1
Bi ● E2.38
E2/000
● 2700

ha

H Ra = 106.6
15

50
90°
90°

A 6.6

Snap-in trough | Components Installation dimensions
Individual parts Part No. Weight XXX A B Ra B Ri
Trough set without glide bars, 2 glide strips of 2m 95.930 ≈ 7.10kg 05 40 94 70
Trough set with glide bars, 2 glide strips of 2m 95.931 ≈ 8.10kg 06* 55 109 85
Glide bar set, 2 glide bars, 1m section 95.920 07 65 119 95
Screw set for glide bar 95.921 09* 80 134 110
Installation set with spacer plate 95.950.XXX ≈ 0.11kg 10 90 144 120
Installation set without spacer plate 95.950 ≈ 0.13kg 12 115 169 145
15 140 194 170
17 165 229 195
20 190 244 220

*Spacer plate upon request
Please add the width index XXX. Example: 95.950.05 XXX = Width index

Order example: series 15 for e-chain inner width 50mm.
®
For 20m trough the following parts are required:
10 x 1m, trough set without glide bars (5 x 2m) 95.930
10 x 1m, trough set with glide bars (5 x 2m) 95.931

Installation set with spacer plate (21x) 95.950.05

3D CAD, confi gurators, service life calculation and more www.igus-asean.com/snap-in-trough 1391
