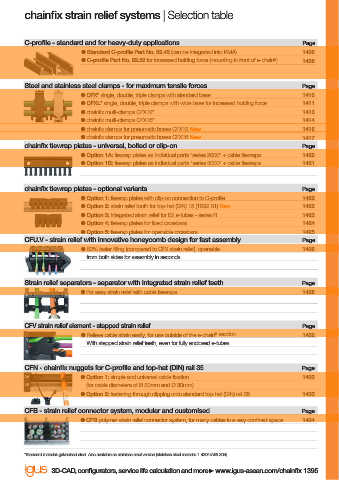

chainfi x strain relief systems | Selection table

C-profi le - standard and for heavy-duty applications Page
● Standard C-profi le Part No. 92.42 (can be integrated into KMA) 1406
● C-profi le Part No. 92.52 for increased holding force (mounting in front of e-chain ® ) 1406

Steel and stainless steel clamps - for maximum tensile forces Page
● CFX* single, double, triple clamps with standard base 1410
● CFXL* single, double, triple clamps with wide base for increased holding force 1411
● chainfi x multi-clamps CFX12* 1413
● chainfi x multi-clamps CFX16* 1414
● chainfi x clamps for pneumatic hoses CFX12 New 1416
● chainfi x clamps for pneumatic hoses CFX16 New 1417
chainfi x tiewrap plates - universal, bolted or clip-on Page
● Option 1A: tiewrap plates as individual parts "series 2000" + cable tiewraps 1420
● Option 1B: tiewrap plates as individual parts "series 3000" + cable tiewraps 1421

chainfi x tiewrap plates - optional variants Page
● Option 1: tiewrap plates with clip-on connection to C-profi le 1422
● Option 2: strain relief tooth for top-hat (DIN) 15 (TS92.31) New 1422
● Option 3: integrated strain relief for E2 e-tubes - series R 1423
● Option 4: tiewrap plates for fi xed crossbars 1424
● Option 5: tiewrap plates for openable crossbars 1425
CFU.V - strain relief with innovative honeycomb design for fast assembly Page
● 80% faster fi lling (compared to CFX strain relief), openable 1426
from both sides for assembly in seconds

Strain relief separators - separator with integrated strain relief teeth Page
● For easy strain relief with cable tiewraps 1428

CFV strain relief element - stepped strain relief Page
● Relieve cable strain easily, for use outside of the e-chain ® section. 1432
With stepped strain relief teeth, even for fully enclosed e-tubes

CFN - chainfi x nuggets for C-profi le and top-hat (DIN) rail 35 Page
● Option 1: simple and universal cable fi xation 1433
(for cable diameters of Ø 20mm and Ø 30mm)
● Option 2: fastening through clipping onto standard top-hat (DIN) rail 35 1433

CFB - strain relief connector system, modular and customised Page
● CFB polymer strain relief connector system, for many cables in a very confi ned space 1434

*Standard material: galvanised steel. Also available as stainless steel version (stainless steel material: 1.4301/AISI 304)
3D-CAD, confi gurators, service life calculation and more www.igus-asean.com/chainfi x 1395
