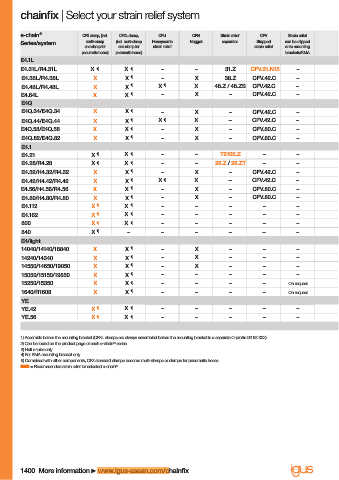

chainfi x | Select your strain relief system

e-chain ® CFX clamp, (incl. CFXL clamp, CFU CFN Strain relief CFV Strain relief
multi-clamp (incl. multi-clamp Honeycomb Nugget separator Stepped can be clipped
Series/system
and clamp for and clamp for strain relief strain relief onto mounting
pneumatic hoses) pneumatic hoses) brackets/KMA
E4.1L
E4.31L/R4.31L X 1) X 1) – – 31.Z CFV.31.N15 –
E4.38L/R4.38L X X 1) – X 38.Z CFV.42.C –
E4.48L/R4.48L X X 1) X 1) X 48.Z / 48.ZS CFV.42.C –
E4.64L X X 1) – X – CFV.42.C –
E4Q
E4Q.34/E4Q.34 X X 1) – X – CFV.42.C –
E4Q.44/E4Q.44 X X 1) X 1) X – CFV.42.C –
E4Q.58/E4Q.58 X X 1) – X – CFV.80.C –
E4Q.82/E4Q.82 X X 1) – X – CFV.80.C –
E4.1
E4.21 X 1) X 1) – – T2103.Z – –
E4.28/R4.28 X 1) X 1) – – 28.Z / 28.ZT – –
E4.32/H4.32/R4.32 X X 1) – X – CFV.42.C –
E4.42/H4.42/R4.42 X X 1) X 1) X – CFV.42.C –
E4.56/H4.56/R4.56 X X 1) – X – CFV.80.C –
E4.80/H4.80/R4.80 X X 1) – X – CFV.80.C –
E4.112 X 1) X 1) – – – – –
E4.162 X 1) X 1) – – – – –
800 X 1) X 1) – – – – –
840 X 1) – – – – – –
E4/light
14040/14140/18840 X X 1) – X – – –
14240/14340 X X 1) – X – – –
14550/14650/19050 X X 1) – X – – –
15050/15150/19850 X X 1) – – – – –
15250/15350 X X 1) – – – – On request
1640/R1608 X X 1) – – – – On request
YE
YE.42 X 1) X 1) – – – – –
YE.56 X 1) X 1) – – – – –

1) Assemble before the mounting bracket (CFXL clamps are always assembled before the mounting bracket in a separate C-profi le 92.52.XXX)
2) Can be found on the product page of each e-chain ® series
3) Half e-tube only
4) For KMA mounting bracket only
5) Combined with other components, CFX standard clamps become multi-clamps or clamps for pneumatic hoses
= Recommended strain relief for selected e-chain ®

1400 More information www.igus-asean.com/chainfi x
