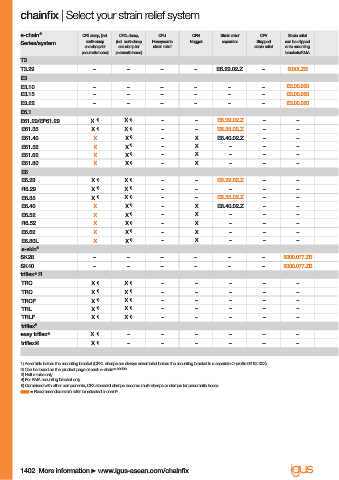

chainfi x | Select your strain relief system

e-chain ® CFX clamp, (incl. CFXL clamp, CFU CFN Strain relief CFV Strain relief
multi-clamp (incl. multi-clamp Honeycomb Nugget separator Stepped can be clipped
Series/system
and clamp for and clamp for strain relief strain relief onto mounting
pneumatic hoses) pneumatic hoses) brackets/KMA
T3
T3.29 – – – – E6.29.02.Z – 20XX.ZB
E3
E3.10 – – – – – – E3.00.020
E3.15 – – – – – – E3.00.020
E3.22 – – – – – – E3.00.020
E6.1
E61.29/EF61.29 X 1) X 1) – – E6.29.02.Z – –
E61.35 X 1) X 1) – – E6.35.02.Z – –
E61.40 X X 1) – X E6.40.02.Z – –
E61.52 X X 1) – X – – –
E61.62 X X 1) – X – – –
E61.80 X X 1) – X – – –
E6
E6.29 X 1) X 1) – – E6.29.02.Z – –
R6.29 X 1) X 1) – – – – –
E6.35 X 1) X 1) – – E6.35.02.Z – –
E6.40 X X 1) – X E6.40.02.Z – –
E6.52 X X 1) – X – – –
R6.52 X X 1) – X – – –
E6.62 X X 1) – X – – –
E6.80L X X 1) – X – – –
e-skin ®
SK28 – – – – – – 2000.077.ZB
SK40 – – – – – – 2000.077.ZB
triflex ® R
TRC X 1) X 1) – – – – –
TRC X 1) X 1) – – – – –
TRCF X 1) X 1) – – – – –
TRL X 1) X 1) – – – – –
TRLF X 1) X 1) – – – – –
triflex ®
easy triflex ® X 1) – – – – – –
triflex® X 1) – – – – – –

1) Assemble before the mounting bracket (CFXL clamps are always assembled before the mounting bracket in a separate C-profi le 92.52.XXX)
2) Can be found on the product page of each e-chain ® series
3) Half e-tube only
4) For KMA mounting bracket only
5) Combined with other components, CFX standard clamps become multi-clamps or clamps for pneumatic hoses
= Recommended strain relief for selected e-chain ®

1402 More information www.igus-asean.com/chainfi x
