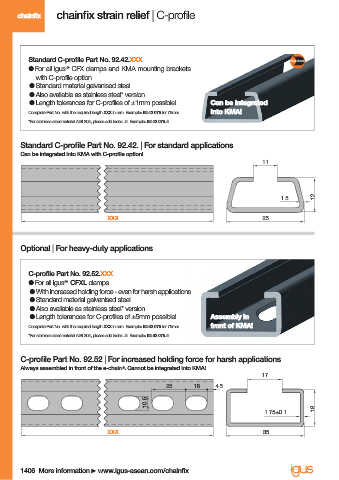

chainfix chainfi x strain relief | C-profi le

Standard C-profi le Part No. 92.42.XXX
● For all igus CFX clamps and KMA mounting brackets
®
with C-profi le option
● Standard material galvanised steel
● Also available as stainless steel* version
● Length tolerances for C-profi les of ±1mm possible! Can be integrated
Complete Part No. with the required length XXX in mm. Example: 92.42.075 for 75mm. into KMA!
*For stainless steel material AISI 304, please add index .E. Example: 92.42.075.E

Standard C-profi le Part No. 92.42. | For standard applications
Can be integrated into KMA with C-profi le option!
11

1.5 12

XXX 25

Optional | For heavy-duty applications

C-profi le Part No. 92.52.XXX
● For all igus CFXL clamps
®
● With increased holding force - even for harsh applications
● Standard material galvanised steel
● Also available as stainless steel* version
● Length tolerances for C-profi les of ±5mm possible! Assembly in
Complete Part No. with the required length XXX in mm. Example: 92.52.075 for 75mm. front of KMA!
*For stainless steel material AISI 304, please add index .E. Example: 92.52.075.E

C-profi le Part No. 92.52 | For increased holding force for harsh applications
Always assembled in front of the e-chain ® . Cannot be integrated into KMA!
17
25 16 4.5
10.5
1.75±0.1 18

XXX 35

1406 More information www.igus-asean.com/chainfi x
