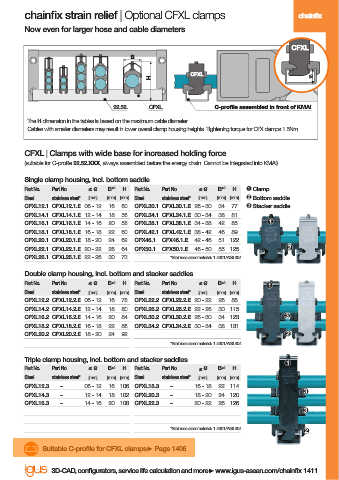

chainfi x strain relief | Optional CFXL clamps chainfix
Now even for larger hose and cable diameters

CFX
CFXL
B B
CFX
CFXL
H H 18

92.52. CFXL C-profi le assembled in front of KMA!
The H dimension in the tables is based on the maximum cable diameter.
Cables with smaller diameters may result in lower overall clamp housing heights. Tightening torque for CFX clamps 1.5Nm.

CFXL | Clamps with wide base for increased holding force
(suitable for C-profi le 92.52.XXX, always assembled before the energy chain. Cannot be integrated into KMA!)

Single clamp housing, incl. bottom saddle
Part No. Part No. ≤ ø B +2 H Part No. Part No. ≤ ø B +2 H Clamp
Steel stainless steel* [mm] [mm] [mm] Steel stainless steel* [mm] [mm] [mm] Bottom saddle
CFXL12.1 CFXL12.1.E 06 - 12 16 60 CFXL30.1 CFXL30.1.E 26 - 30 34 77 Stacker saddle
CFXL14.1 CFXL14.1.E 12 - 14 18 56 CFXL34.1 CFXL34.1.E 30 - 34 38 81
CFXL16.1 CFXL16.1.E 14 - 16 20 58 CFXL38.1 CFXL38.1.E 34 - 38 42 85
CFXL18.1 CFXL18.1.E 16 - 18 22 60 CFXL42.1 CFXL42.1.E 38 - 42 46 89
CFXL20.1 CFXL20.1.E 18 - 20 24 62 CFX46.1 CFX46.1.E 42 - 46 51 122
CFXL22.1 CFXL22.1.E 20 - 22 26 64 CFX50.1 CFX50.1.E 46 - 50 55 125
CFXL26.1 CFXL26.1.E 22 - 26 30 73 *Stainless steel material: 1.4301/AISI 304

Double clamp housing, incl. bottom and stacker saddles
Part No. Part No. ≤ ø B +2 H Part No. Part No. ≤ ø B +2 H
Steel stainless steel* [mm] [mm] [mm] Steel stainless steel* [mm] [mm] [mm]
CFXL12.2 CFXL12.2.E 06 - 12 16 78 CFXL22.2 CFXL22.2.E 20 - 22 26 86
CFXL14.2 CFXL14.2.E 12 - 14 18 80 CFXL26.2 CFXL26.2.E 22 - 26 30 115
CFXL16.2 CFXL16.2.E 14 - 16 20 84 CFXL30.2 CFXL30.2.E 26 - 30 34 123
CFXL18.2 CFXL18.2.E 16 - 18 22 86 CFXL34.2 CFXL34.2.E 30 - 34 38 131
CFXL20.2 CFXL20.2.E 18 - 20 24 92
*Stainless steel material: 1.4301/AISI 304

Triple clamp housing, incl. bottom and stacker saddles
Part No. Part No. ≤ ø B +2 H Part No. Part No. ≤ ø B +2 H
Steel stainless steel* [mm] [mm] [mm] Steel stainless steel* [mm] [mm] [mm]
CFXL12.3 – 06 - 12 16 106 CFXL18.3 – 16 - 18 22 114
CFXL14.3 – 12 - 14 18 102 CFXL20.3 – 18 - 20 24 120
CFXL16.3 – 14 - 16 20 108 CFXL22.3 – 20 - 22 26 126

*Stainless steel material: 1.4301/AISI 304

Suitable C-profi le for CFXL clamps Page 1406

3D-CAD, confi gurators, service life calculation and more www.igus-asean.com/chainfi x 1411
