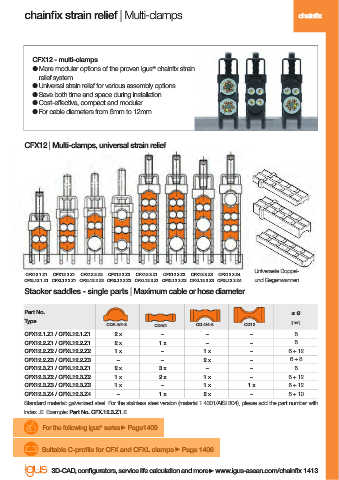

chainfi x strain relief | Multi-clamps chainfix

CFX12 - multi-clamps
● More modular options of the proven igus chainfi x strain
®
relief system
● Universal strain relief for various assembly options
● Save both time and space during installation
● Cost-eff ective, compact and modular
● For cable diameters from 6mm to 12mm

CFX12 | Multi-clamps, universal strain relief

Universelle Doppel-
CFX12.1.Z1 CFX12.2.Z1 CFX12.2.Z2 CFX12.2.Z3 CFX12.3.Z1 CFX12.3.Z2 CFX12.3.Z3 CFX12.3.Z4
CFXL12.1.Z1 CFXL12.2.Z1 CFXL12.2.Z2 CFXL12.2.Z3 CFXL12.3.Z1 CFXL12.3.Z2 CFXL12.3.Z3 CFXL12.3.Z4 und Gegenwannen
Stacker saddles - single parts | Maximum cable or hose diameter

Part No. ≤ ø
Type [mm]
CDA.4/4-8 CD4/4 CD.4/4-8 CD12
CFX12.1.Z1 / CFXL12.1.Z1 2 x – – – 6
CFX12.2.Z1 / CFXL12.2.Z1 2 x 1 x – – 6
CFX12.2.Z2 / CFXL12.2.Z2 1 x – 1 x – 6 + 12
CFX12.2.Z3 / CFXL12.2.Z3 – – 2 x – 6 + 8
CFX12.3.Z1 / CFXL12.3.Z1 2 x 3 x – – 6
CFX12.3.Z2 / CFXL12.3.Z2 1 x 2 x 1 x – 6 + 12
CFX12.3.Z3 / CFXL12.3.Z3 1 x – 1 x 1 x 6 + 12
CFX12.3.Z4 / CFXL12.3.Z4 – 1 x 2 x – 6 + 10
Standard material: galvanised steel. For the stainless steel version (material 1.4301/AISI 304), please add the part number with
index .E. Example: Part No. CFX.12.3.Z1.E
®
For the following igus series Page1409

Suitable C-profi le for CFX and CFXL clamps Page 1406

3D-CAD, confi gurators, service life calculation and more www.igus-asean.com/chainfi x 1413
