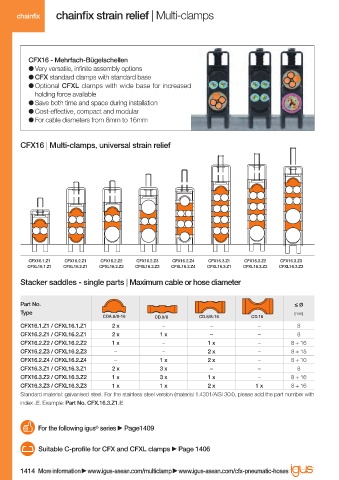

Page 1416 - IGUS ECS CATALOG

chainfix chainfi x strain relief | Multi-clamps

CFX16 - Mehrfach-Bügelschellen
● Very versatile, infi nite assembly options
● CFX standard clamps with standard base
● Optional CFXL clamps with wide base for increased
holding force available
● Save both time and space during installation
● Cost-eff ective, compact and modular
● For cable diameters from 8mm to 16mm

CFX16 | Multi-clamps, universal strain relief

CFX16.1.Z1 CFX16.2.Z1 CFX16.2.Z2 CFX16.2.Z3 CFX16.2.Z4 CFX16.3.Z1 CFX16.3.Z2 CFX16.3.Z3
CFXL16.1.Z1 CFXL16.2.Z1 CFXL16.2.Z2 CFXL16.2.Z3 CFXL16.2.Z4 CFXL16.3.Z1 CFXL16.3.Z2 CFXL16.3.Z3
Stacker saddles - single parts | Maximum cable or hose diameter

Part No. ≤ ø
Type [mm]
CDA.8/8-16 CD.8/8 CD.8/8-16 CD.16
CFX16.1.Z1 / CFXL16.1.Z1 2 x – – – 8
CFX16.2.Z1 / CFXL16.2.Z1 2 x 1 x – – 8
CFX16.2.Z2 / CFXL16.2.Z2 1 x – 1 x – 8 + 16
CFX16.2.Z3 / CFXL16.2.Z3 – – 2 x – 8 + 15
CFX16.2.Z4 / CFXL16.2.Z4 – 1 x 2 x – 8 + 10
CFX16.3.Z1 / CFXL16.3.Z1 2 x 3 x – – 8
CFX16.3.Z2 / CFXL16.3.Z2 1 x 3 x 1 x – 8 + 16
CFX16.3.Z3 / CFXL16.3.Z3 1 x 1 x 2 x 1 x 8 + 16
Standard material: galvanised steel. For the stainless steel version (material 1.4301/AISI 304), please add the part number with
index .E. Example: Part No. CFX.16.3.Z1.E

For the following igus series Page1409
®
Suitable C-profi le for CFX and CFXL clamps Page 1406
