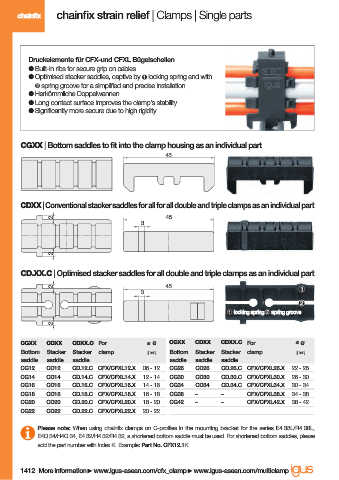

Page 1414 - IGUS ECS CATALOG

chainfix chainfi x strain relief | Clamps | Single parts

Druckelemente für CFX-und CFXL Bügelschellen
● Built-in ribs for secure grip on cables
● Optimised stacker saddles, captive by locking spring and with
spring groove for a simplifi ed and precise installation
● Herkömmliche Doppelwannen
● Long contact surface improves the clamp’s stability
● Signifi cantly more secure due to high rigidity

CGXX | Bottom saddles to fi t into the clamp housing as an individual part
45

CDXX | Conventional stacker saddles for all for all double and triple clamps as an individual part
2 45
3

2

CD.XX.C | Optimised stacker saddles for all double and triple clamps as an individual part

2 45
3

locking spring spring groove
2

CGXX CDXX CDXX.C For ≤ ø CGXX CDXX CDXX.C For ≤ ø
Bottom Stacker Stacker clamp [mm] Bottom Stacker Stacker clamp [mm]
saddle saddle saddle saddle saddle saddle
CG12 CD12 CD.12.C CFX/CFXL12.X 06 - 12 CG26 CD26 CD.26.C CFX/CFXL26.X 22 - 26
CG14 CD14 CD.14.C CFX/CFXL14.X 12 - 14 CG30 CD30 CD.30.C CFX/CFXL30.X 26 - 30
CG16 CD16 CD.16.C CFX/CFXL16.X 14 - 16 CG34 CD34 CD.34.C CFX/CFXL34.X 30 - 34
CG18 CD18 CD.18.C CFX/CFXL18.X 16 - 18 CG38 – – CFX/CFXL38.X 34 - 38
CG20 CD20 CD.20.C CFX/CFXL20.X 18 - 20 CG42 – – CFX/CFXL42.X 38 - 42
CG22 CD22 CD.22.C CFX/CFXL22.X 20 - 22

Please note: When using chainfix clamps on C-profiles in the mounting bracket for the series E4.38L/R4.38L,
E4Q.34/H4Q.34, E4.32/H4.32/R4.32, a shortened bottom saddle must be used. For shortened bottom saddles, please
add the part number with index K. Example: Part No. CFX12.1K

1412 More information www.igus-asean.com/cfx_clamp www.igus-asean.com/multiclamp
