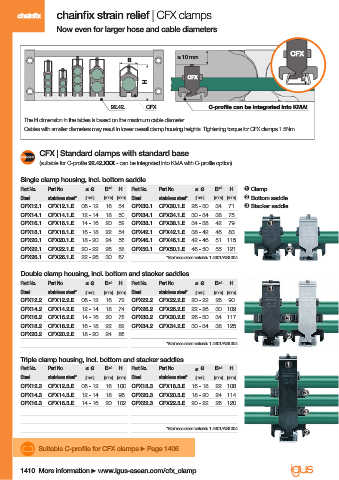

chainfix chainfi x strain relief | CFX clamps
Now even for larger hose and cable diameters

CFX
≥ 10 mm
B B
CFX
H H 12

92.42. CFX C-profi le can be integrated into KMA!
The H dimension in the tables is based on the maximum cable diameter.
Cables with smaller diameters may result in lower overall clamp housing heights. Tightening torque for CFX clamps 1.5Nm.

CFX | Standard clamps with standard base
(suitable for C-profi le 92.42.XXX - can be integrated into KMA with C-profi le option)

Single clamp housing, incl. bottom saddle
Part No. Part No. ≤ ø B +2 H Part No. Part No. ≤ ø B +2 H Clamp
Steel stainless steel* [mm] [mm] [mm] Steel stainless steel* [mm] [mm] [mm] Bottom saddle
CFX12.1 CFX12.1.E 06 - 12 16 54 CFX30.1 CFX30.1.E 26 - 30 34 71 Stacker saddle
CFX14.1 CFX14.1.E 12 - 14 18 50 CFX34.1 CFX34.1.E 30 - 34 38 75
CFX16.1 CFX16.1.E 14 - 16 20 52 CFX38.1 CFX38.1.E 34 - 38 42 79
CFX18.1 CFX18.1.E 16 - 18 22 54 CFX42.1 CFX42.1.E 38 - 42 46 83
CFX20.1 CFX20.1.E 18 - 20 24 56 CFX46.1 CFX46.1.E 42 - 46 51 115
CFX22.1 CFX22.1.E 20 - 22 26 58 CFX50.1 CFX50.1.E 46 - 50 55 121
CFX26.1 CFX26.1.E 22 - 26 30 67 *Stainless steel material: 1.4301/AISI 304

Double clamp housing, incl. bottom and stacker saddles
Part No. Part No. ≤ ø B +2 H Part No. Part No. ≤ ø B +2 H
Steel stainless steel* [mm] [mm] [mm] Steel stainless steel* [mm] [mm] [mm]
CFX12.2 CFX12.2.E 06 - 12 16 72 CFX22.2 CFX22.2.E 20 - 22 26 90
CFX14.2 CFX14.2.E 12 - 14 18 74 CFX26.2 CFX26.2.E 22 - 26 30 109
CFX16.2 CFX16.2.E 14 - 16 20 78 CFX30.2 CFX30.2.E 26 - 30 34 117
CFX18.2 CFX18.2.E 16 - 18 22 82 CFX34.2 CFX34.2.E 30 - 34 38 125
CFX20.2 CFX20.2.E 18 - 20 24 86
*Stainless steel material: 1.4301/AISI 304

Triple clamp housing, incl. bottom and stacker saddles
Part No. Part No. ≤ ø B +2 H Part No. Part No. ≤ ø B +2 H
Steel stainless steel* [mm] [mm] [mm] Steel stainless steel* [mm] [mm] [mm]
CFX12.3 CFX12.3.E 06 - 12 16 100 CFX18.3 CFX18.3.E 16 - 18 22 108
CFX14.3 CFX14.3.E 12 - 14 18 96 CFX20.3 CFX20.3.E 18 - 20 24 114
CFX16.3 CFX16.3.E 14 - 16 20 102 CFX22.3 CFX22.3.E 20 - 22 26 120

*Stainless steel material: 1.4301/AISI 304

Suitable C-profi le for CFX clamps Page 1406

1410 More information www.igus-asean.com/cfx_clamp
