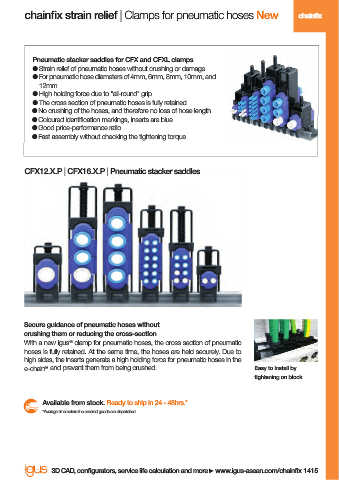

chainfi x strain relief | Clamps for pneumatic hoses New chainfix

Pneumatic stacker saddles for CFX and CFXL clamps
● Strain relief of pneumatic hoses without crushing or damage
● For pneumatic hose diameters of 4mm, 6mm, 8mm, 10mm, and
12mm
● High holding force due to "all-round" grip
● The cross section of pneumatic hoses is fully retained
● No crushing of the hoses, and therefore no loss of hose length
● Coloured identifi cation markings, inserts are blue
● Good price-performance ratio
● Fast assembly without checking the tightening torque

CFX12.X.P | CFX16.X.P | Pneumatic stacker saddles

Secure guidance of pneumatic hoses without
crushing them or reducing the cross-section
With a new igus clamp for pneumatic hoses, the cross section of pneumatic
®
hoses is fully retained. At the same time, the hoses are held securely. Due to
high sides, the inserts generate a high holding force for pneumatic hoses in the
e-chain and prevent them from being crushed. Easy to install by
®
tightening on block

Available from stock. Ready to ship in 24 - 48hrs.*
*Average time before the ordered goods are dispatched.

3D CAD, confi gurators, service life calculation and more www.igus-asean.com/chainfi x 1415
