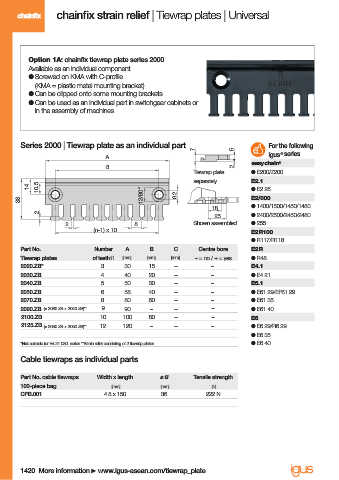

Page 1422 - IGUS ECS CATALOG

chainfix chainfi x strain relief | Tiewrap plates | Universal

Option 1A: chainfi x tiewrap plate series 2000
Available as an individual component
● Screwed on KMA with C-profi le
(KMA = plastic metal mounting bracket)
● Can be clipped onto some mounting brackets
● Can be used as an individual part in switchgear cabinets or
in the assembly of machines

Series 2000 | Tiewrap plate as an individual part For the following
7 5
®
A igus series
easy chain ®
B 2
Tiewrap plate ● E200/Z200
separately E2.1
14 10.5 ● E2.26
38 12/90° 6.2 E2/000
18 ● 1400/1500/1450/1480
2
25 ● 2400/2500/2450/2480
2 8 Shown assembled ● 255
(n-1) x 10
E2 R100
● R117/R118
Part No. Number A B C Centre bore E2 R
Tiewrap plates of teeth [n] [mm] [mm] [mm] – = no / + = yes ● R48
2020.ZB* 3 30 15 – – E4.1
2030.ZB 4 40 20 – – ● E4.21
2040.ZB 5 50 30 – – E6.1
2050.ZB 6 58 40 – – ● E61.29/EF61.29
2070.ZB 8 80 60 – – ● E61.35
2090.ZB (= 2030.ZB + 2040.ZB)** 9 90 – – – ● E61.40
2100.ZB 10 100 80 – – E6
2125.ZB (= 2050.ZB + 2050.ZB)** 12 120 – – – ● E6.29/R6.29
● E6.35
*Not suitable for E4.21.030. series **Strain relief consisting of 2 tiewrap plates ● E6.40

Cable tiewraps as individual parts

Part No. cable tiewraps Width x length ≤ ø Tensile strength
100-piece bag [mm] [mm] [N]
CFB.001 4.8 x 150 36 222 N

1420 More information www.igus-asean.com/tiewrap_plate
