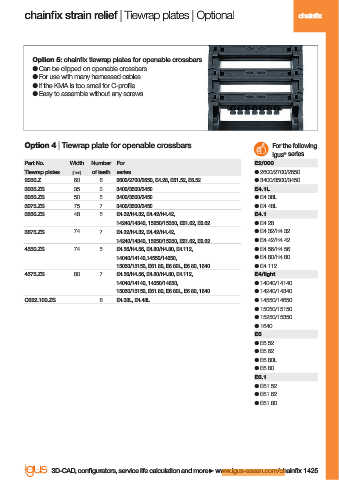

chainfi x strain relief | Tiewrap plates | Optional chainfix

Option 5: chainfi x tiewrap plates for openable crossbars
● Can be clipped on openable crossbars
● For use with many harnessed cables
● If the KMA is too small for C-profi le
● Easy to assemble without any screws

Option 4 | Tiewrap plate for openable crossbars For the following
igus series
®
Part No. Width Number For E2/000
Tiewrap plates [mm] of teeth series ● 2600/2700/2650
2050.Z 60 6 2600/2700/2650, E4.28, E61.52, E6.52 ● 3400/3500/3450
3035.ZS 35 3 3400/3500/3450 E4.1L
3050.ZS 50 5 3400/3500/3450 ● E4.38L
3075.ZS 75 7 3400/3500/3450 ● E4.48L
3850.ZS 48 5 E4.32/H4.32, E4.42/H4.42, E4.1
14240/14340, 15250/15350, E61.62, E6.62 ● E4.28
3875.ZS 74 7 E4.32/H4.32, E4.42/H4.42, ● E4.32/H4.32
14240/14340, 15250/15350, E61.62, E6.62 ● E4.42/H4.42
4550.ZS 74 5 E4.56/H4.56, E4.80/H4.80, E4.112, ● E4.56/H4.56
14040/14140,14550/14650, ● E4.80/H4.80
15050/15150, E61.80, E6.80L, E6.80, 1640 ● E4.112
4575.ZS 80 7 E4.56/H4.56, E4.80/H4.80, E4.112, E4/light
14040/14140, 14550/14650, ● 14040/14140
15050/15150, E61.80, E6.80L, E6.80, 1640 ● 14240/14340
C622.100.ZS 8 E4.38L, E4.48L ● 14550/14650
● 15050/15150
● 15250/15350
● 1640
E6
● E6.52
● E6.62
● E6.80L
● E6.80
E6.1
● E61.52
● E61.62
● E61.80

3D-CAD, confi gurators, service life calculation and more www.igus-asean.com/chainfi x 1425
