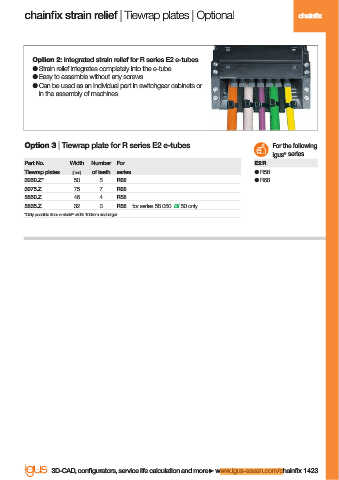

chainfi x strain relief | Tiewrap plates | Optional                   chainfix





                          Option 2: integrated strain relief for R series E2 e-tubes
                          ●  Strain relief integrates completely into the e-tube
                          ●  Easy to assemble without any screws
                          ●  Can be used as an individual part in switchgear cabinets or
                            in the assembly of machines





                        Option 3 | Tiewrap plate for R series E2 e-tubes              For the following
                                                                                         ®
                                                                                      igus  series
                        Part No.    Width  Number  For                            E2 R
                        Tiewrap plates  [mm]  of teeth  series                    ●  R58
                        3050.Z*      50    5   R68                                ●  R68
                        3075.Z       75    7   R68
                        5850.Z       46    4   R58
                        5835.Z       32    3   R58  for series 58.050. Bi 50 only
                        *Only possible from e-chain ®  width 100mm and larger






































                               3D-CAD, confi gurators, service life calculation and more   www.igus-asean.com/chainfi x 1423
