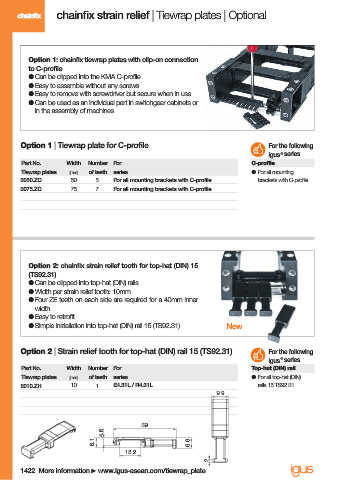

Page 1424 - IGUS ECS CATALOG

chainfix chainfi x strain relief | Tiewrap plates | Optional

Option 1: chainfi x tiewrap plates with clip-on connection
to C-profi le
● Can be clipped into the KMA C-profi le
● Easy to assemble without any screws
● Easy to remove with screwdriver but secure when in use
● Can be used as an individual part in switchgear cabinets or
in the assembly of machines

Option 1 | Tiewrap plate for C-profi le For the following
®
igus series
Part No. Width Number For C-profi le
Tiewrap plates [mm] of teeth series ● For all mounting
3050.ZC 50 5 For all mounting brackets with C-profile brackets with C-profi le
3075.ZC 75 7 For all mounting brackets with C-profile

Option 2: chainfi x strain relief tooth for top-hat (DIN) 15
(TS92.31)
● Can be clipped into top-hat (DIN) rails
● Width per strain relief tooth: 10mm
● Four ZE teeth on each side are required for a 40mm inner
width
● Easy to retrofi t
● Simple installation into top-hat (DIN) rail 15 (TS92.31) New

Option 2 | Strain relief tooth for top-hat (DIN) rail 15 (TS92.31) For the following
®
igus series
Part No. Width Number For Top-hat (DIN) rail
Tiewrap plates [mm] of teeth series ● For all top-hat (DIN)
2010.ZH 10 1 E4.31L / R4.31L rails 15 TS92.31
9.9

39
4.6
6.1 6.6
13.2
2
1422 More information www.igus-asean.com/tiewrap_plate
