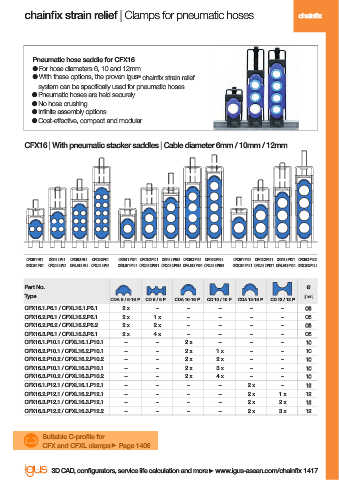

chainfi x strain relief | Clamps for pneumatic hoses chainfix

Pneumatic hose saddle for CFX16
● For hose diameters 6, 10 and 12mm
● With these options, the proven igus chainfi x strain relief
®
system can be specifi cally used for pneumatic hoses
● Pneumatic hoses are held securely
● No hose crushing
● Infi nite assembly options
● Cost-eff ective, compact and modular

CFX16 | With pneumatic stacker saddles | Cable diameter 6mm / 10mm / 12mm

CFX16.1.P6.1 CFX16.2.P6.1 CFX16.2.P6.2 CFX16.3.P6.1 CFX16.1.P10.1 CFX16.2.P10.1 CFX16.2.P10.2 CFX16.3.P10.1 CFX16.3.P10.2 CFX16.1.P12.1 CFX16.2.P12.1 CFX16.3.P12.1 CFX16.3.P12.2
CFXL16.1.P6.1 CFXL16.2.P6.1 CFXL16.2.P6.2 CFXL16.3.P6.1 CFXL16.1.P10.1 CFXL16.2.P10.1 CFXL16.2.P10.2 CFXL16.3.P10.1 CFXL16.3.P10.2 CFXL16.1.P12.1 CFXL16.2.P12.1 CFXL16.3.P12.1 CFXL16.3.P12.2

Part No. ø
Type [mm]
CDA.6 / 6-16.P CD.6 / 6.P CDA.10-16.P CD.10 / 10.P CDA.12-16.P CD.12 / 12.P
06
CFX16.1.P6.1 / CFXL16.1.P6.1 2 x – – – – – 06
CFX16.2.P6.1 / CFXL16.2.P6.1 2 x 1 x – – – – 06
06
CFX16.2.P6.2 / CFXL16.2.P6.2 2 x 2 x – – – – 06
06
CFX16.3.P6.1 / CFXL16.3.P6.1 2 x 4 x – – – – 06
06
10
CFX16.1.P10.1 / CFXL16.1.P10.1 – – 2 x – – – 10
10
CFX16.2.P10.1 / CFXL16.2.P10.1 – – 2 x 1 x – – 10
CFX16.2.P10.2 / CFXL16.2.P10.2 – – 2 x 2 x – – 10
10
CFX16.3.P10.1 / CFXL16.3.P10.1 – – 2 x 3 x – – 10
10
10
CFX16.3.P10.2 / CFXL16.3.P10.2 – – 2 x 4 x – – 10
CFX16.1.P12.1 / CFXL16.1.P12.1 – – – – 2 x – 12
12
12
CFX16.2.P12.1 / CFXL16.2.P12.1 – – – – 2 x 1 x 12
12
CFX16.3.P12.1 / CFXL16.3.P12.1 – – – – 2 x 2 x 12
12
CFX16.3.P12.2 / CFXL16.3.P12.2 – – – – 2 x 3 x 12
Suitable C-profi le for
CFX and CFXL clamps Page 1406
3D CAD, confi gurators, service life calculation and more www.igus-asean.com/chainfi x 1417
