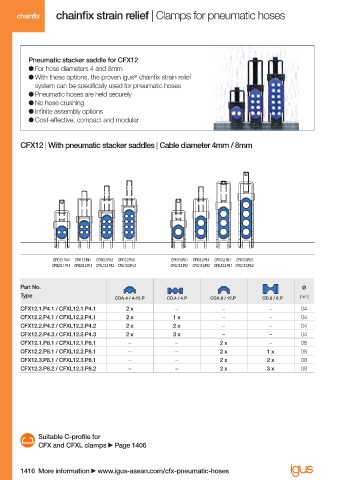

Page 1418 - IGUS ECS CATALOG

chainfix chainfi x strain relief | Clamps for pneumatic hoses

Pneumatic stacker saddle for CFX12
● For hose diameters 4 and 8mm
● With these options, the proven igus chainfi x strain relief
®
system can be specifi cally used for pneumatic hoses
● Pneumatic hoses are held securely
● No hose crushing
● Infi nite assembly options
● Cost-eff ective, compact and modular

CFX12 | With pneumatic stacker saddles | Cable diameter 4mm / 8mm

CFX12.1.P4.1 CFX12.2.P4.1 CFX12.2.P4.2 CFX12.2.P4.3 CFX12.1.P8.1 CFX12.2.P8.1 CFX12.3.P8.1 CFX12.3.P8.2
CFXL12.1.P4.1 CFXL12.2.P4.1 CFXL12.2.P4.2 CFXL12.2.P4.3 CFXL12.1.P8.1 CFXL12.2.P8.1 CFXL12.3.P8.1 CFXL12.3.P8.2

Part No. ø
Type [mm]
CDA.4 / 4-12.P CD.4 / 4.P CDA.8 / 12.P CD.8 / 8.P
CFX12.1.P4.1 / CFXL12.1.P4.1 2 x – – – 04
CFX12.2.P4.1 / CFXL12.2.P4.1 2 x 1 x – – 04
CFX12.2.P4.2 / CFXL12.2.P4.2 2 x 2 x – – 04
CFX12.2.P4.3 / CFXL12.2.P4.3 2 x 3 x – – 04
CFX12.1.P8.1 / CFXL12.1.P8.1 – – 2 x – 08
CFX12.2.P8.1 / CFXL12.2.P8.1 – – 2 x 1 x 08
CFX12.3.P8.1 / CFXL12.3.P8.1 – – 2 x 2 x 08
CFX12.3.P8.2 / CFXL12.3.P8.2 – – 2 x 3 x 08

Suitable C-profi le for
CFX and CFXL clamps Page 1406

1416 More information www.igus-asean.com/cfx-pneumatic-hoses
