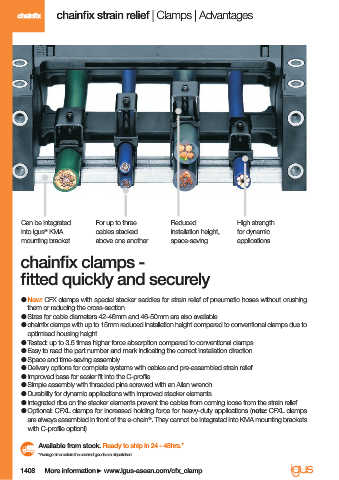

Page 1410 - IGUS ECS CATALOG

chainfix chainfi x strain relief | Clamps | Advantages

Can be integrated For up to three Reduced High strength
into igus KMA cables stacked installation height, for dynamic
®
mounting bracket above one another space-saving applications
chainfi x clamps -

fi tted quickly and securely

● New: CFX clamps with special stacker saddles for strain relief of pneumatic hoses without crushing
them or reducing the cross-section
● Sizes for cable diameters 42-46mm and 46-50mm are also available
● chainfi x clamps with up to 15mm reduced installation height compared to conventional clamps due to
optimised housing height
● Tested: up to 3.5 times higher force absorption compared to conventional clamps
● Easy to read the part number and mark indicating the correct installation direction
● Space and time-saving assembly
● Delivery options for complete systems with cables and pre-assembled strain relief
● Improved base for easier fi t into the C-profi le
● Simple assembly with threaded pins screwed with an Allen wrench
● Durability for dynamic applications with improved stacker elements
● Integrated ribs on the stacker elements prevent the cables from coming loose from the strain relief
● Optional: CFXL clamps for increased holding force for heavy-duty applications (note: CFXL clamps
are always assembled in front of the e-chain . They cannot be integrated into KMA mounting brackets
®
with C-profi le option!)
Available from stock. Ready to ship in 24 - 48hrs.*
*Average time before the ordered goods are dispatched.
