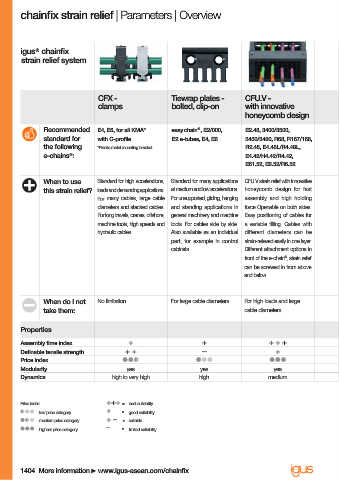

chainfi x strain relief | Parameters | Overview

igus chainfi x
®
strain relief system

CFX - Tiewrap plates - CFU.V -
clamps bolted, clip-on with innovative
honeycomb design
Recommended E4, E6, for all KMA* easy chain ® , E2/000, E2.48, 3400/3500,
standard for with C-profi le E2 e-tubes, E4, E6 3450/3480, R68, R167/168,
the following *Plastic metal mounting bracket R2.48, E4.48L/R4.48L,
®
e-chains : E4.42/H4.42/R4.42,
E61.52, E6.52/R6.52
When to use Standard for high accelerations, Standard for many applications CFU.V strain relief with innovative
this strain relief? loads and demanding applications. at medium and low accelerations. honeycomb design for fast
For many cables, large cable For unsupported, gliding, hanging assembly and high holding
diameters and stacked cables. and standing applications in force Openable on both sides.
For long travels, cranes, off shore, general machinery and machine Easy positioning of cables for
machine tools, high speeds and tools. For cables side by side. a variable filling. Cables with
hydraulic cables. Also available as an individual different diameters can be
part, for example in control strain-relieved easily in one layer.
cabinets. Diff erent attachment options in
front of the e-chain ® , strain relief
can be screwed in from above
and below.

When do I not No limitation For large cable diameters For high loads and large
take them: cable diameters

Properties
Assembly time index + + + + +
Defi nable tensile strength + + – +
Price index
Modularity yes yes yes
Dynamics high to very high high medium

Price index +++ = best suitability
low price category + = good suitability
medium price category + – = suitable
highest price category – = limited suitability

1404 More information www.igus-asean.com/chainfi x
