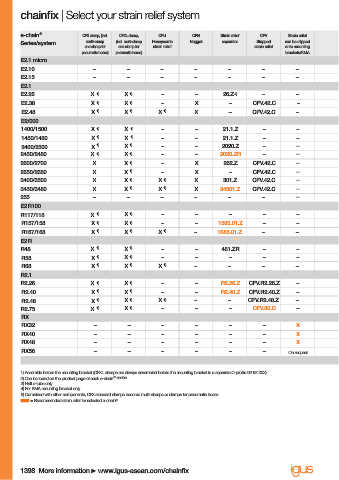

chainfi x | Select your strain relief system

e-chain ® CFX clamp, (incl. CFXL clamp, CFU CFN Strain relief CFV Strain relief
multi-clamp (incl. multi-clamp Honeycomb Nugget separator Stepped can be clipped
Series/system
and clamp for and clamp for strain relief strain relief onto mounting
pneumatic hoses) pneumatic hoses) brackets/KMA
E2.1 micro
E2.10 – – – – – – –
E2.15 – – – – – – –
E2.1
E2.26 X 1) X 1) – – 26.Z 4) – –
E2.38 X 1) X 1) – X – CFV.42.C –
E2.48 X 1) X 1) X 1) X – CFV.42.C –
E2/000
1400/1500 X 1) X 1) – – 21.1.Z – –
1450/1480 X 1) X 1) – – 21.1.Z – –
2400/2500 X 1) X 1) – – 2020.Z – –
2450/2480 X 1) X 1) – – 2020.ZR – –
2600/2700 X X 1) – X 262.Z CFV.42.C –
2650/2680 X X 1) – X – CFV.42.C –
3400/3500 X X 1) X 1) X 301.Z CFV.42.C –
3450/3480 X X 1) X 1) X 34501.Z CFV.42.C –
255 – – – – – – –
E2 R100
R117/118 X 1) X 1) – – – – –
R157/158 X 1) X 1) – – 1585.01.Z – –
R167/168 X 1) X 1) X 1) – 1685.01.Z – –
E2 R
R48 X 1) X 1) – – 481.ZR – –
R58 X 1) X 1) – – – – –
R68 X 1) X 1) X 1) – – – –
R2.1
R2.26 X 1) X 1) – – R2.26.Z CFV.R2.26.Z –
R2.40 X 1) X 1) – – R2.40.Z CFV.R2.40.Z –
R2.48 X 1) X 1) X 1) – – CFV.R2.48.Z –
R2.75 X 1) X 1) – – – CFV.80.C –
RX
RX32 – – – – – – X
RX40 – – – – – – X
RX48 – – – – – – X
RX56 – – – – – – On request

1) Assemble before the mounting bracket (CFXL clamps are always assembled before the mounting bracket in a separate C-profi le 92.52.XXX)
2) Can be found on the product page of each e-chain ® series
3) Half e-tube only
4) For KMA mounting bracket only
5) Combined with other components, CFX standard clamps become multi-clamps or clamps for pneumatic hoses
= Recommended strain relief for selected e-chain ®
