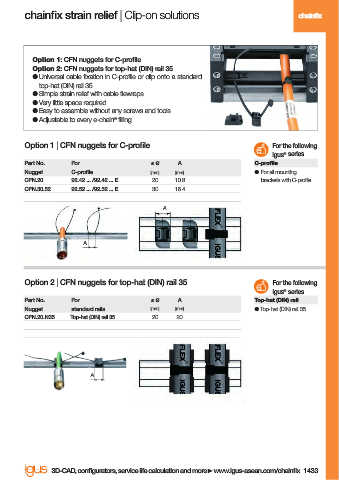

chainfi x strain relief | Clip-on solutions chainfix

Option 1: CFN nuggets for C-profi le
Option 2: CFN nuggets for top-hat (DIN) rail 35
● Universal cable fi xation in C-profi le or clip onto a standard
top-hat (DIN) rail 35
● Simple strain relief with cable tiewraps
● Very little space required
● Easy to assemble without any screws and tools
● Adjustable to every e-chain fi lling
®
Option 1 | CFN nuggets for C-profi le For the following
®
igus series
Part No. For ≤ ø A C-profi le
Nugget C-profi le [mm] [mm] ● For all mounting
CFN.20 92.42 ... /92.42 ... E 20 10.8 brackets with C-profi le
CFN.30.52 92.52 ... /92.52 ... E 30 16.4

A

A

Option 2 | CFN nuggets for top-hat (DIN) rail 35 For the following
igus series
®
Part No. For ≤ ø A Top-hat (DIN) rail
Nugget standard rails [mm] [mm] ● Top-hat (DIN) rail 35
CFN.20.N35 Top-hat (DIN) rail 35 20 20

A

3D-CAD, confi gurators, service life calculation and more www.igus-asean.com/chainfi x 1433
