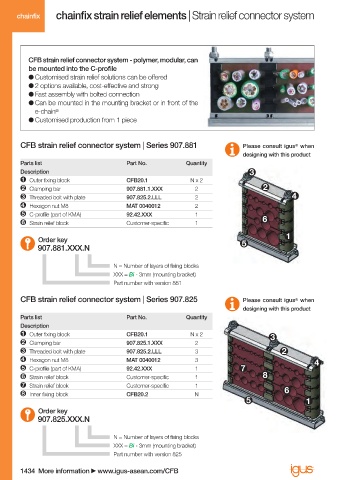

chainfix chainfi x strain relief elements | Strain relief connector system

CFB strain relief connector system - polymer, modular, can
be mounted into the C-profi le
● Customised strain relief solutions can be off ered
● 2 options available, cost-eff ective and strong
● Fast assembly with bolted connection
● Can be mounted in the mounting bracket or in front of the
e-chain ®
● Customised production from 1 piece

CFB strain relief connector system | Series 907.881 Please consult igus ® when
designing with this product
Parts list Part No. Quantity
Description
Outer fi xing block CFB20.1 N x 2
Clamping bar 907.881.1.XXX 2
Threaded bolt with plate 907.825.2.LLL 2
Hexagon nut M8 MAT 0040012 2
C-profi le (part of KMA) 92.42.XXX 1
Strain relief block Customer-specifi c 1
Order key
907.881.XXX.N

N = Number of layers of fi xing blocks
XXX = Bi - 3mm (mounting bracket)
Part number with version 881
CFB strain relief connector system | Series 907.825 Please consult igus ® when
designing with this product
Parts list Part No. Quantity
Description
Outer fi xing block CFB20.1 N x 2
Clamping bar 907.825.1.XXX 2
Threaded bolt with plate 907.825.2.LLL 3
Hexagon nut M8 MAT 0040012 3
C-profi le (part of KMA) 92.42.XXX 1
Strain relief block Customer-specifi c 1
Strain relief block Customer-specifi c 1
Inner fi xing block CFB20.2 N

Order key
907.825.XXX.N

N = Number of layers of fi xing blocks
XXX = Bi - 3mm (mounting bracket)
Part number with version 825
1434 More information www.igus-asean.com/CFB
