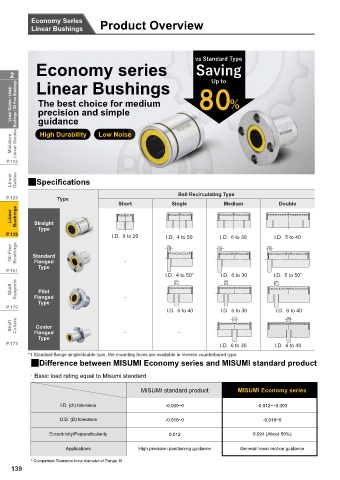

Page 142 - MiSUMi FA Mechanical Components Economy Series

Economy Series
Product OverviewOverview
Linear Bushings Product

YV 6WDQGDUG 7\SH
Economy series 6DYLQJ
2 Linear Bushings 8S WR

Linear Guides / Linear Bushings / Oil Free Bushings The best choice for medium ᵖᵎ

precision and simple
guidance

Miniature Linear Guides High Durability Low Noisee

P.113

Linear Guides 2Specifications

Ball Recirculating Type
P.123 Type
Short Single Medium Double
Linear Bushings

Straight
Type
P.139 I.D. 6 to 20 I.D. 4 to 50 I.D. 6 to 30 I.D. 5 to 40
Oil Free Bushings Standard

Flanged
Type -
P.161
I.D. 4 to 50 *1 I.D. 6 to 30 I.D. 5 to 50 *1
Shaft Supports Pilot
Flanged
Type -
P.170
I.D. 6 to 40 I.D. 6 to 30 I.D. 6 to 40
Shaft Collars Center
Flanged
Type - -
P.173 I.D. 6 to 30 I.D. 6 to 40
*1 Standard fl ange single/double type, the mounting holes are available in reverse counterbored type.
2Difference between MISUMI Economy series and MISUMI standard product

· Basic load rating equal to Misumi standard
MISUMI standard product MISUMI Economy series

I.D. (dr) tolerance -0.009~0 -0.012~+0.003

O.D. (D) tolerance -0.016~0 -0.018~0

Eccentricity/Perpendicularity 0.012 0.024 (About 50%)

Applications High precision positioning guidance General linear motion guidance
* Comparison Tolerance inner diameter of Flange 16
139
