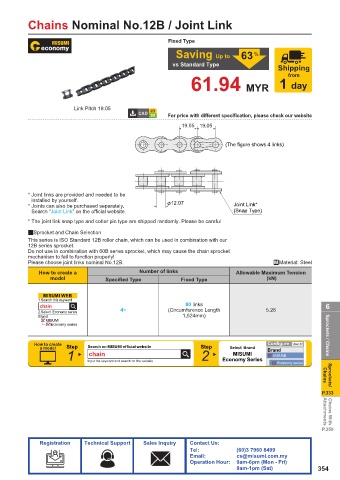

Page 357 - MiSUMi FA Mechanical Components Economy Series

Chains Nominal No.12B / Joint Link

Fixed Type

Saving Up to 63 %
vs Standard Type
Shipping
from
61.94 MYR 1 day

Link Pitch 19.05
For price with different specification, please check our website
19.05 19.05

(The figure shows 4 links)

* Joint links are provided and needed to be
installed by yourself.
* Joints can also be purchased separately. П12.07 Joint Link*
Search “Joint Link” on the offi cial website. (Snap Type)
* The joint link snap type and cotter pin type are shipped randomly. Please be careful

2Sprocket and Chain Selection
This series is ISO Standard 12B roller chain, which can be used in combination with our
12B series sprocket.
Do not use in combination with 60B series sprocket, which may cause the chain sprocket
mechanism to fail to function properly!
Please choose joint links nominal No.12B. .Material: Steel
How to create a Number of links Allowable Maximum Tension
model Specifi ed Type Fixed Type (kN)

MISUMI WEB
1.Search this keyword
chain 80 links 6
2.Select Economy series 4~ (Circumference Length 5.26
Brand 1,524mm)
MISUMI
Economy series

How to create Search on MISUMI official website Configure Clear All Sprockets / Chains
a model Step Step Select Brand Brand
1 chain 2 MISUMI MISUMI
Economy Series
Input the keyword and search on the website
Economy series Chains Sprockets/

P.333

Attachments
Chains With
P.359
