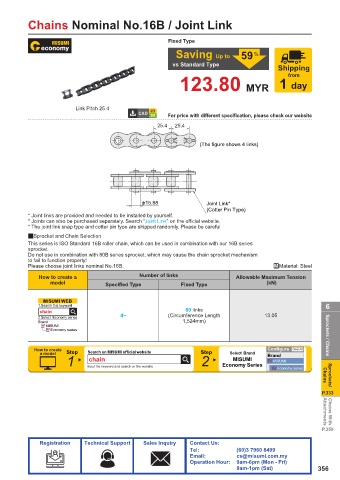

Page 359 - MiSUMi FA Mechanical Components Economy Series

Chains Nominal No.16B / Joint Link

Fixed Type

Saving Up to 59 %
vs Standard Type
Shipping
from
123.80 MYR 1 day

Link Pitch 25.4
For price with different specification, please check our website
25.4 25.4

(The figure shows 4 links)

П15.88 Joint Link*
(Cotter Pin Type)
* Joint links are provided and needed to be installed by yourself.
* Joints can also be purchased separately. Search “Joint Link” on the offi cial website.
* The joint link snap type and cotter pin type are shipped randomly. Please be careful
2Sprocket and Chain Selection
This series is ISO Standard 16B roller chain, which can be used in combination with our 16B series
sprocket.
Do not use in combination with 80B series sprocket, which may cause the chain sprocket mechanism
to fail to function properly!
Please choose joint links nominal No.16B. .Material: Steel
How to create a Number of links Allowable Maximum Tension
model Specifi ed Type Fixed Type (kN)

MISUMI WEB
1.Search this keyword 6
chain 60 links
2.Select Economy series 4~ (Circumference Length 13.05
Brand 1,524mm)
MISUMI
Economy series Sprockets / Chains

How to create Configure Clear All
a model Step Search on MISUMI official website Step Select Brand Brand
1 chain 2 MISUMI MISUMI
Economy Series
Input the keyword and search on the website
Economy series Chains Sprockets/

P.333

Attachments
Chains With
P.359
