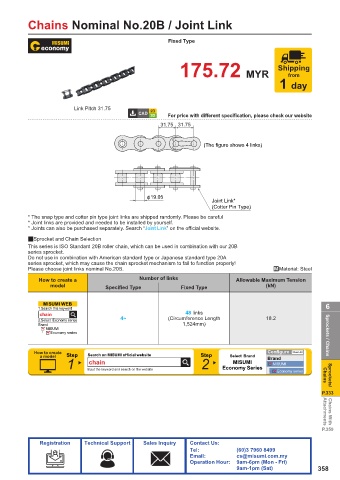

Page 361 - MiSUMi FA Mechanical Components Economy Series

Chains Nominal No.20B / Joint Link

Fixed Type

Shipping
175.72 MYR from
1 day

Link Pitch 31.75
For price with different specification, please check our website
31.75 31.75

(The figure shows 4 links)

П19.05
Joint Link*
(Cotter Pin Type)
* The snap type and cotter pin type joint links are shipped randomly. Please be careful
* Joint links are provided and needed to be installed by yourself.
* Joints can also be purchased separately. Search “Joint Link” on the offi cial website.
2Sprocket and Chain Selection
This series is ISO Standard 20B roller chain, which can be used in combination with our 20B
series sprocket.
Do not use in combination with American standard type or Japanese standard type 20A
series sprocket, which may cause the chain sprocket mechanism to fail to function properly!
Please choose joint links nominal No.20B. .Material: Steel
How to create a Number of links Allowable Maximum Tension
model Specifi ed Type Fixed Type (kN)

MISUMI WEB
1.Search this keyword 6
chain 48 links
2.Select Economy series 4~ (Circumference Length 18.2
Brand 1,524mm)
MISUMI
Economy series Sprockets / Chains

How to create Configure Clear All
a model Step Search on MISUMI official website Step Select Brand Brand
1 Input the keyword and search on the website 2 Economy Series MISUMI Chains Sprockets/
chain
MISUMI
Economy series
P.333

Attachments
Chains With
P.359
