Pallet Centering Mechanism

Application Industries: Automotive part Logistics

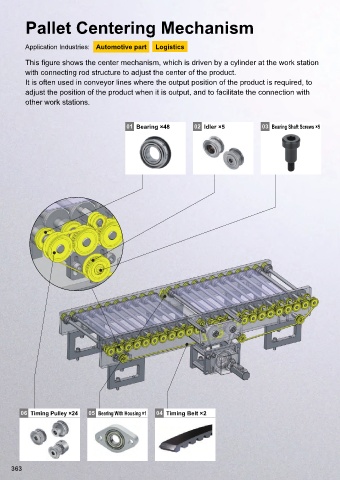

This figure shows the center mechanism, which is driven by a cylinder at the work station
with connecting rod structure to adjust the center of the product.
It is often used in conveyor lines where the output position of the product is required, to
adjust the position of the product when it is output, and to facilitate the connection with
other work stations.

01 Bearing ×48 02 Idler ×5 03 Bearing Shaft Screws ×5

06 Timing Pulley ×24 05 Bearing With Housing ×1 04 Timing Belt ×2
