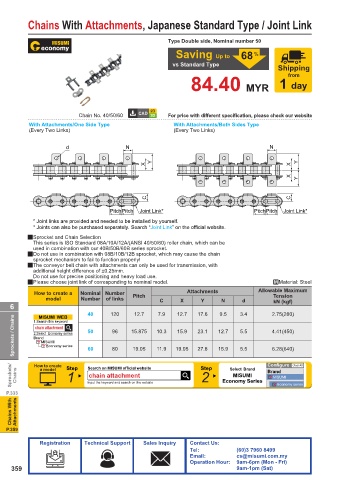

Page 362 - MiSUMi FA Mechanical Components Economy Series

Chains With Attachments, Japanese Standard Type / Joint Link

Type Double side, Nominal number 50

Saving Up to 68 %
vs Standard Type
Shipping
from
84.40 MYR 1 day

Chain No. 40/50/60 For price with different specification, please check our website
With Attachments/One Side Type With Attachments/Both Sides Type
(Every Two Links) (Every Two Links)

d N N

Y Y
X X
X
Y

C C
PitchPitch Joint Link* PitchPitch Joint Link*
* Joint links are provided and needed to be installed by yourself.
* Joints can also be purchased separately. Search “Joint Link” on the official website.
2 Sprocket and Chain Selection
This series is ISO Standard 08A/10A/12A/(ANSI 40/50/60) roller chain, which can be
used in combination with our 40B/50B/60B series sprocket.
2 Do not use in combination with 08B/10B/12B sprocket, which may cause the chain
sprocket mechanism to fail to function properly!
2 The conveyor belt chain with attachments can only be used for transmission, with
additional height diff erence of ±0.25mm.
Do not use for precise positioning and heavy load use.
2 Please choose joint link of corresponding to nominal model. .Material: Steel
How to create a Nominal Number Pitch Attachments Allowable Maximum
Tension
model Number of links C X Y N d kN (kgf)
6
40 120 12.7 7.9 12.7 17.6 9.5 3.4 2.75(280)
Sprockets / Chains 2.Select Economy series 50 96 15.875 10.3 19.05 23.1 12.7 5.5 4.41(450)
MISUMI WEB
1.Search this keyword
chain attachment
15.9
Brand
MISUMI
Economy series
6.28(640)
15.9
27.8
5.5
19.05
80
60
11.9
Sprockets/ Chains How to create Step Input the keyword and search on the website Step Economy Series Configure Clear All
Search on MISUMI official website
Select Brand
a model
Brand
1
2
chain attachment
MISUMI
MISUMI
P.333 Economy series
Chains With Attachments
P.359
