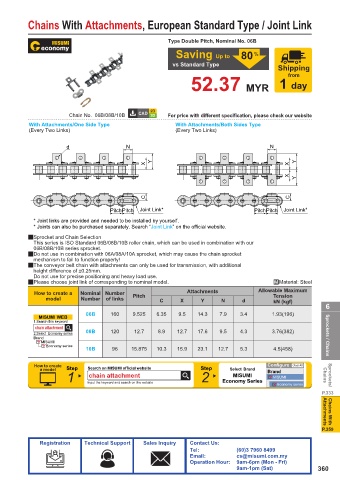

Page 363 - MiSUMi FA Mechanical Components Economy Series

Chains With Attachments, European Standard Type / Joint Link

Type Double Pitch, Nominal No. 06B

Saving Up to 80 %
vs Standard Type
Shipping
from
52.37 MYR 1 day

Chain No. 06B/08B/10B For price with different specification, please check our website
With Attachments/One Side Type With Attachments/Both Sides Type
(Every Two Links) (Every Two Links)

d N N

Y Y
X X
X
Y

C C
PitchPitch Joint Link* PitchPitch Joint Link*
* Joint links are provided and needed to be installed by yourself.
* Joints can also be purchased separately. Search “Joint Link” on the official website.
2 Sprocket and Chain Selection
This series is ISO Standard 06B/08B/10B roller chain, which can be used in combination with our
06B/08B/10B series sprocket.
2 Do not use in combination with 06A/08A/10A sprocket, which may cause the chain sprocket
mechanism to fail to function properly!
2 The conveyor belt chain with attachments can only be used for transmission, with additional
height diff erence of ±0.25mm.
Do not use for precise positioning and heavy load use.
2 Please choose joint link of corresponding to nominal model. .Material: Steel
How to create a Nominal Number Pitch Attachments Allowable Maximum
Tension
model Number of links C X Y N d kN (kgf)
6
06B 160 9.525 6.35 9.5 14.3 7.9 3.4 1.93(196)
MISUMI WEB
1.Search this keyword
chain attachment
2.Select Economy series 08B 120 12.7 8.9 12.7 17.6 9.5 4.3 3.76(382)
Brand Sprockets / Chains
MISUMI
Economy series
10B 96 15.875 10.3 15.9 23.1 12.7 5.3 4.5(458)
How to create Configure Clear All
a model Step Search on MISUMI official website Step Select Brand Brand
1 Input the keyword and search on the website 2 Economy Series MISUMI Chains Sprockets/
chain attachment
MISUMI
Economy series
P.333

Attachments
Chains With
P.359
