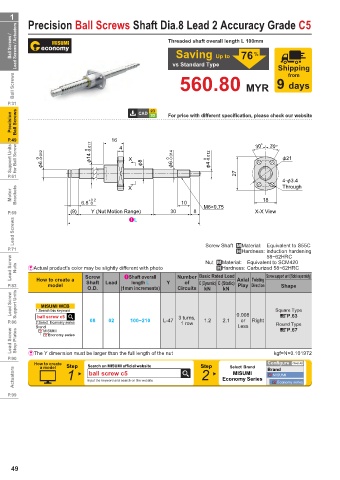

1    Precision Ball Screws Shaft Dia.8 Lead 2 Accuracy Grade C5

      Ball Screws /  Lead Screws / Actuators          Threaded shaft overall length L 100mm

                                                                            76
                                                                                %
                                                        Saving Up to
                                                       vs Standard Type
                                                                                       Shipping
                                                                                          from
       Ball Screws                                       560.80 MYR                    9 days


     P.31
      Precision   Ball Screws                         For price with different specification, please check our website



     P.49                     -0.017  16  4                                     30°  30°
      Support Units   for Ball Screw  П6  0  -0.012  П14  0  X  П8  -0.014  П6  0  -0.012  П4  0  П21




     P.61                                                                 27
                                                                                        4- П3.4
                                                                                        Through
      Motor   Brackets        +0.2        X                                       18
                                                          10
                           6.8  0
                                                                 M6×0.75
     P.69               (9)   Y (Nut Motion Range)    30     8                  X-X View
       Lead Screws
                                           L


     P.71                                                        Screw Shaft    .Material:   Equivalent to S55C
                                                                          )Hardness:  induction hardening
      Lead Screw   Nuts  &  Actual product's color may be slightly different with photo  Number  Basic Rated Load  Screw support unit (Sold separately)
                                                                                    58~62HRC
                                                                 Nut    .Material:   Equivalent to SCM420
                                                                    )Hardness:  Carburized 58~62HRC
                                         Shaft overall
                                                           of
                                           length L
                             Shaft  Lead
                 model
                                                                           Play Direction
     P.83     How to create a   Screw   (1mm increments)  Y  Circuits  C (Dynamic)  C (Static)   Axial  Twisting   Shape
                             O.D.
                                                                 kN
                                                                      kN
      Lead Screw   Support Units   1.Search this keyword                              Square Type
               MISUMI WEB
                                                                                        %P.63
              ball screw c5
                                                                            or
     P.86     2.Select  Economy series  08  02  100~210  L-47  3 turns,   1.2  2.1  0.008   Right  Round Type
                                                          1 row
              Brand MISUMI                                                 Less         %P.67
      Lead Screw   Stop Plates  Economy series
     P.90  &   The Y dimension must be larger than the full length of the nut         kgf=N×0.101972
