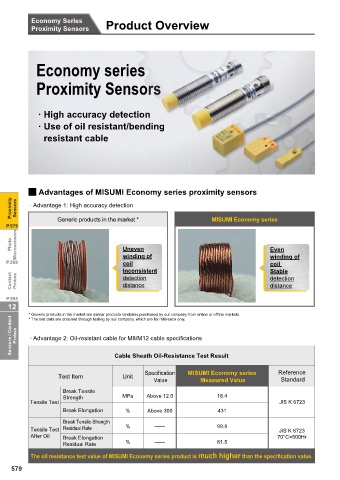

Page 582 - MiSUMi FA Mechanical Components Economy Series

Economy Series
Proximity Sensors Product Overview

Economy series

Proximity Sensors

· High accuracy detectionn
· Use of oil resistant/bending dinng
resistant cable

2 Advantages of MISUMI Economy series proximity sensors
Proximity Sensors · Advantage 1: High accuracy detection

Generic products in the market * MISUMI Economy series
P.579

Photo Microsensors Uneven Even

P.589 winding of winding of
coil
coil
Inconsistent Stable
Contact Probes detection detection
distance
distance
P.595
12
* Generic products in the market are similar products randomly purchased by our company from online or offline markets.
Sensors / Contact Probes · Advantage 2: Oil-resistant cable for M8/M12 cable specifications
* The test data are obtained through testing by our company, which are for reference only.

Cable Sheath Oil-Resistance Test Result

Specification MISUMI Economy series Reference
Test Item Unit
Value Measured Value Standard
Break Tensile
Strength MPa Above 12.0 18.4
Tensile Test JIS K 6723
Break Elongation % Above 300 431
Break Tensile Strength
Tensile Test Residual Rate % —— 99.8 JIS K 6723
After Oil Break Elongation 70°C×500Hr
Residual Rate % —— 81.5
The oil resistance test value of MISUMI Economy series product is much higher than the specification value.
