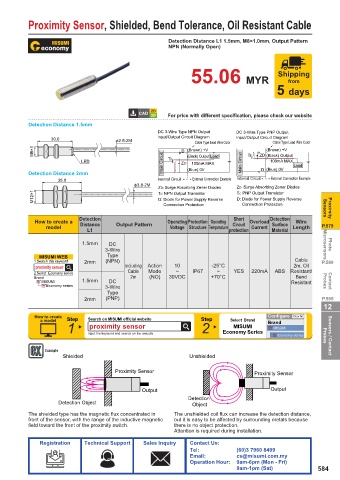

Page 587 - MiSUMi FA Mechanical Components Economy Series

Proximity Sensor, Shielded, Bend Tolerance, Oil Resistant Cable

Detection Distance L1 1.5mm, M8×1.0mm, Output Pattern
NPN (Normally Open)

Shipping
55.06 MYR from

5 days

For price with different specification, please check our website
Detection Distance 1.5mm
DC 3-Wire Type NPN Output DC 3-Wire Type PNP Output
Input/Output Circuit Diagram Input/Output Circuit Diagram
30.0 П2.8-2M Cable Type Lead Wire Color Cable Type Lead Wire Color
M8×1 D (Brown) +V Load Tr ZD (Black) Output
(Brown) +V
(Black) Output
LED Main Circuit Tr ZD 100mA MAX. Main Circuit 100mA MAX. Load
Detection Distance 2mm (Blue) 0V D (Blue) 0V
35.0 Internal Circuit External Connection Example Internal Circuit External Connection Example
П3.8-2M
ZD: Surge Absorbing Zener Diodes ZD: Surge Absorbing Zener Diodes
M12×1 Tr: NPN Output Transistor Tr: PNP Output Transistor
D: Diode for Power Supply Reverse
D: Diode for Power Supply Reverse
Connection Protection Connection Protection Sensors Proximity
Detection Short Detection
How to create a Operating Protection Operating Overload Wire
model Distance Output Pattern Voltage Structure Temperature Circuit Current Surface Length P.579
L1 protection Material
1.5mm DC Microsensors Photo
3-Wire
MISUMI WEB Type
1.Search this keyword 2mm (NPN) Cable P.589
proximity sensor Including Action 10 -25°C 2m, Oil
2.Select Economy series Cable Mode ~ IP67 ~ YES 220mA ABS Resistant/
Brand 2m (NO) 30VDC +70°C Bend
MISUMI 1.5mm DC Resistant Probes Contact
Economy series 3-Wire
Type
2mm (PNP) P.595
12

How to create Configure Clear All
a model Step Search on MISUMI official website Step Select Brand Brand
1 proximity sensor 2 MISUMI MISUMI
Economy Series
Input the keyword and search on the website
Economy series Probes Sensors / Contact
Example
Shielded Unshielded

Proximity Sensor
Proximity Sensor
Output Output
Detection
Detection Object Object
The shielded type has the magnetic fl ux concentrated in The unshielded coil fl ux can increase the detection distance,
front of the sensor, with the range of the inductive magnetic but it is easy to be aff ected by surrounding metals because
fi eld toward the front of the proximity switch. there is no object protection.
Attention is required during installation.
