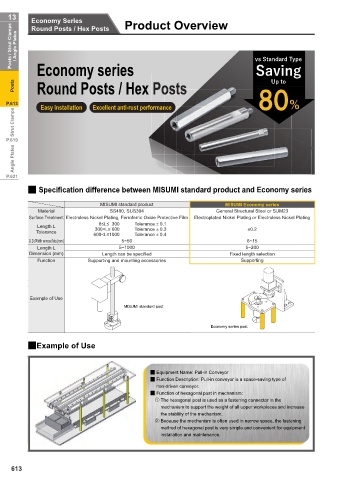

Page 616 - MiSUMi FA Mechanical Components Economy Series

13 Economy Series Product Overview
Posts / Strut Clamps / Angle Plates YV 6WDQGDUG 7\SH
Round Posts / Hex Posts

Round Posts / Hex Posts
8S WR
Posts Economy series 6DYLQJ
P.613 Easy installation Excellent anti-rust performanceoormannce ᵖᵎ
Strut Clamps

P.619
Angle Plates

P.621
conomy seriesss
2 Specification difference between MISUMI standard product and Economy seriesndard product aand Economyct and Economy
MISUMI standard product MISUMI Economy series
Material SS400, SUS304 General Structural Steel or SUM23
Surface Treatment Electroless Nickel Plating, Ferroferric Oxide Protective Film Electroplated Nickel Plating or Electroless Nickel Plating
8≤L≤ 300 Tolerance ± 0.1
Length L
Tolerance 300<L≤ 600 Tolerance ± 0.3 ±0.2
600<L≤1000 Tolerance ± 0.4
O.D./Width across fl ats (mm) 5~50 6~15
Length L 5~1000 5~200
Dimension (mm) Length can be specifi ed Fixed length selection
Function Supporting and mounting accessories Supporting

Example of Use
MISUMI standard post

Economy series post

2Example of Use

2 Equipment Name: Pull-in Conveyor
2 Function Description: Pull-in conveyor is a space-saving type of
non-driven conveyor.
2 Function of hexagonal post in mechanism:
The hexagonal post is used as a fastening connector in the
mechanism to support the weight of all upper workpieces and increase
the stability of the mechanism.
Because the mechanism is often used in narrow space, the fastening
method of hexagonal post is very simple and convenient for equipment
installation and maintenance.

613
