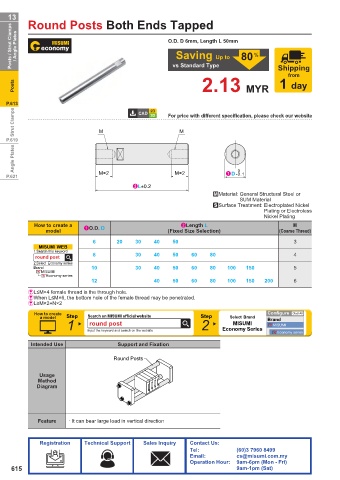

Page 618 - MiSUMi FA Mechanical Components Economy Series

13 Round Posts Both Ends Tapped
Posts / Strut Clamps / Angle Plates O.D. D 6mm, Length L 50mm 80 %

Saving Up to
vs Standard Type
Shipping
from
Posts 2.13 MYR 1 day

P.613
Strut Clamps For price with different specification, please check our website

P.619 M M
Angle Plates

0
P.621 M×2 M×2 D -0.1
L±0.2
.Material: General Structural Steel or
SUM Material
4Surface Treatment: Electroplated Nickel
Plating or Electroless
Nickel Plating
How to create a O.D. D Length L M
model (Fixed Size Selection) (Coarse Thread)
6 20 30 40 50 3
MISUMI WEB
1.Search this keyword
round post 8 30 40 50 60 80 4
2.Select Economy series
Brand 10 30 40 50 60 80 100 150 5
MISUMI
Economy series
12 40 50 60 80 100 150 200 6
&L≤M×4 female thread is the through hole.
&When L≤M×6, the bottom hole of the female thread may be penetrated.
&L≥M×2+N×2
How to create Configure Clear All
a model Step Search on MISUMI official website Step Select Brand Brand
1 round post 2 MISUMI MISUMI
Economy Series
Input the keyword and search on the website
Economy series
Intended Use Support and Fixation
Round Posts

Usage
Method
Diagram

Feature · It can bear large load in vertical direction
