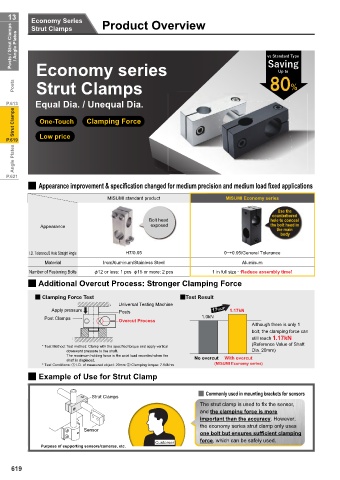

13     Economy Series        Product Overview
      Posts / Strut Clamps   / Angle Plates                                         YV 6WDQGDUG 7\SH
            Strut Clamps




                                                                                    6DYLQJ
                                                                                       8S WR
              Strut Clamps
       Posts  Economy series                                                         ᵖᵎ

     P.613   Equal Dia. / Unequal Dia.
       Strut Clamps   One-Touch  Clamping Force




     P.619     Low price
       Angle Plates




     P.621
           2 Appearance improvement & specification changed for medium precision and medium load fixed applications
                                   MISUMI standard product             MISUMI Economy series

                                                                                       Use the
                                                                                     counterbored
                                                Bolt head                            hole to conceal
               Appearance                       exposed                              the bolt head in
                                                                                       the main
                                                                                        body

            I.D. Tolerance/2 Hole Straight Angle  H7/0.05              0~+0.05/General Tolerance
                Material          Iron/Aluminum/Stainless Steel             Aluminum
            Number of Fastening Bolts  П12 or less: 1 pcs  П15 or more: 2 pcs  1 in full size···Reduce assembly time!
           2 Additional Overcut Process: Stronger Clamping Force

             2 Clamping Force Test                       2Test Result
                                       Universal Testing Machine
                  Apply pressure       Posts                       17%UP  1.17kN
                Post Clamps            Overcut Process          1.0kN
                                                                               Although there is only 1
                                                                               bolt, the clamping force can
                                                                               still reach 1.17kN
                                                                               (Reference Value of Shaft
               * Test Method: Test method: Clamp with the specified torque and apply vertical
                       downward pressure to the shaft.                         Dia. 20mm)
                       The maximum holding force is the axial load recorded when the
                       shaft is displaced.                    No overcut  With overcut
               * Test Conditions:   I.D. of measured object: 20mm   Clamping torque: 7.54N·m  (MISUMI Economy series)
           2 Example of Use for Strut Clamp

                                                               2 Commonly used in mounting brackets for sensors
                               Strut Clamps
                                                               The strut clamp is used to fix the sensor,
                                                               and the clamping force is more
                                                               important than the accuracy. However,
                                                               the economy series strut clamp only uses
                            Sensor
                                                               one bolt but ensures sufficient clamping
                                                  Customer     force, which can be safely used.
               Purpose of supporting sensors/cameras, etc.


      619
