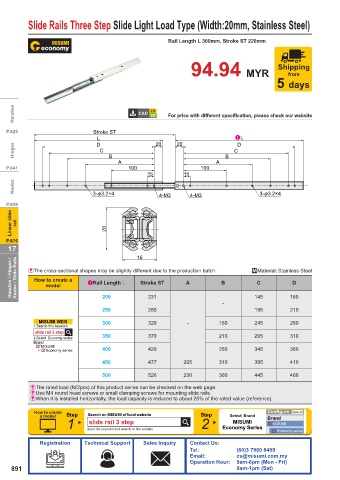

Slide Rails Three Step Slide Light Load Type (Width:20mm, Stainless Steel)

Rail Length L 300mm, Stroke ST 220mm

Shipping
94.94 MYR from
5 days

Handles For price with different specification, please check our website

P.825 Stroke ST
L 20 20 L
Hinges D C C D
B
A A B
P.841 100 100
15 15
Knobs 3-П3.2×4 4-M3 4-M3 3-П3.2×4

P.858
Linear slide rail 20

P.876
17 16
Handles / Hinges / Knobs / Slide Rails & The cross-sectional shapes may be slightly different due to the production batch. B .Material: Stainless Steel

How to create a
Stroke ST
C
D
Rail Length L
A
model
200
231
- 145 160
250 280 195 210
MISUMI WEB 300 329 - 160 245 260
1.Search this keyword
slide rail 3 step
2.Select Economy series 350 379 210 295 310
Brand
MISUMI
Economy series 400 428 260 345 360
450 477 205 310 395 410
500 526 230 360 445 460
&The rated load (N/2pcs) of this product series can be checked on the web page.
&Use M4 round head screws or small clamping screws for mounting slide rails.
&When it is installed horizontally, the load capacity is reduced to about 25% of the rated value (reference).
