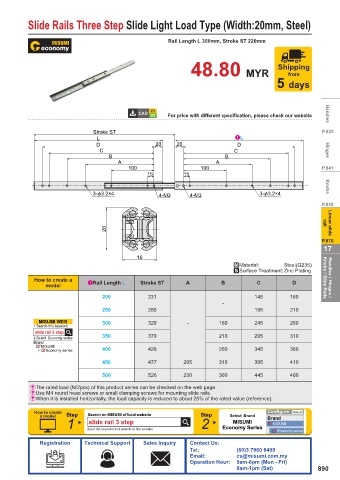

Page 893 - MiSUMi FA Mechanical Components Economy Series

Slide Rails Three Step Slide Light Load Type (Width:20mm, Steel)

Rail Length L 300mm, Stroke ST 220mm

Shipping
48.80 MYR from
5 days

For price with different specification, please check our website Handles

Stroke ST P.825
L L
D 20 20 D
C C Hinges
B B
A A
100 100 P.841
15 15

3-П3.2×4 4-M3 4-M3 3-П3.2×4 Knobs
P.858

20 rail Linear slide
P.876
17
16
.Material: Steel(Q235)
4Surface Treatment: Zinc Plating
How to create a Rail Length L Stroke ST A B C D Knobs / Slide Rails Handles / Hinges /
model
200 231 145 160
-
250 280 195 210

MISUMI WEB 300 329 - 160 245 260
1.Search this keyword
slide rail 3 step
2.Select Economy series 350 379 210 295 310
Brand
MISUMI
Economy series 400 428 260 345 360
450 477 205 310 395 410

500 526 230 360 445 460
&The rated load (N/2pcs) of this product series can be checked on the web page.
&Use M4 round head screws or small clamping screws for mounting slide rails.
&When it is installed horizontally, the load capacity is reduced to about 25% of the rated value (reference).

How to create Configure Clear All
a model Step Search on MISUMI official website Step Select Brand Brand
1 slide rail 3 step 2 MISUMI MISUMI
Economy Series
Input the keyword and search on the website
Economy series
