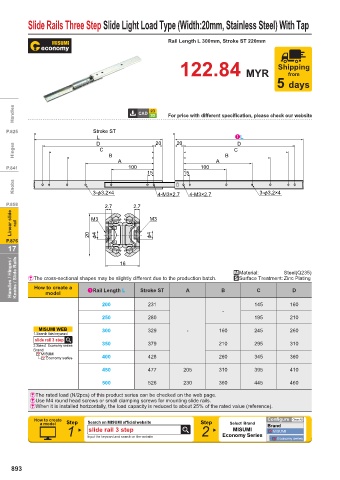

Slide Rails Three Step Slide Light Load Type (Width:20mm, Stainless Steel) With Tap

Rail Length L 300mm, Stroke ST 220mm

Shipping
122.84 MYR from
5 days

Handles For price with different specification, please check our website

P.825 Stroke ST
L 20 20 L
D
D
Hinges C B B C
A A
P.841 100 100
15 15
Knobs 3-П3.2×4 4-M3×2.7 4-M3×2.7 3-П3.2×4

P.858 2.7 2.7
Linear slide rail M3 M3

P.876 20 П4 П4
17
Handles / Hinges / Knobs / Slide Rails & The cross-sectional shapes may be slightly different due to the production batch. B .Material: C Steel(Q235)
16
4Surface Treatment: Zinc Plating
How to create a
Rail Length L
D
Stroke ST
A
model
200 231 145 160
-
250 280 195 210
MISUMI WEB 300 329 - 160 245 260
1.Search this keyword
slide rail 3 step
2.Select Economy series 350 379 210 295 310
Brand
MISUMI
Economy series 400 428 260 345 360
450 477 205 310 395 410
500 526 230 360 445 460
&The rated load (N/2pcs) of this product series can be checked on the web page.
&Use M4 round head screws or small clamping screws for mounting slide rails.
&When it is installed horizontally, the load capacity is reduced to about 25% of the rated value (reference).
How to create Search on MISUMI official website Configure Clear All
a model Step Step Select Brand Brand
1 slide rail 3 step 2 MISUMI MISUMI
Economy Series
Input the keyword and search on the website
Economy series
