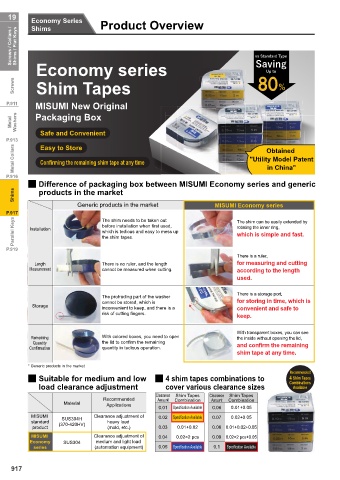

Page 920 - MiSUMi FA Mechanical Components Economy Series

19
Economy Series Product Overview
Shims
Screws / Collars / Shims / Flat Keys YV 6WDQGDUG 7\SH

Economy series 6DYLQJ
8S WR
Screws Shim Tapes ᵖᵎ

P.911 MISUMI New Original

Metal Washers Packaging Box

Safe and Convenient
P.913 Easy to Store
Metal Collars Confirming the remaining shim tape at any time "Utility Model Patent
Obtained

in China"
P.916
2 Difference of packaging box between MISUMI Economy series and generic nomy series and generic
Shims products in the market
Generic products in the market MISUMI Economy series
P.917 The shim needs to be taken out The shim can be easily extended by
Parallel Keys Installation before installation when first used, rotating the inner ring,
which is tedious and easy to mess up
which is simple and fast.
the shim tapes.
P.919
There is a ruler,
Length There is no ruler, and the length for measuring and cutting
Measurement cannot be measured when cutting. according to the length
used.

There is a storage port,
The protruding part of the washer
cannot be stored, which is for storing in time, which is
Storage inconvenient to keep, and there is a convenient and safe to
risk of cutting fingers. keep.

With transparent boxes, you can see
Remaining With colored boxes, you need to open the inside without opening the lid,
Quantity the lid to confirm the remaining and confirm the remaining
Confirmation quantity in tedious operation.
shim tape at any time.
* Generic products in the market
Recommended!
2 Suitable for medium and low 2 4 shim tapes combinations to 4 Shim Tapes
load clearance adjustment cover various clearance sizes Combinations
Available
Clearance Shim Tapes Clearance Shim Tapes
Recommended Amount Combination Amount Combination
Material Applications
0.01 Specification Available 0.06 0.01+0.05
MISUMI SUS304H Clearance adjustment of 0.02 Specification Available 0.07 0.02+0.05
standard (370-420HV) heavy load
product (mold, etc.) 0.03 0.01+0.02 0.08 0.01+0.02+0.05
MISUMI Clearance adjustment of 0.04 0.02×2 pcs 0.09 0.02×2 pcs+0.05
Economy SUS304 medium and light load
series (automation equipment) 0.05 Specification Available 0.1 Specification Available

917
