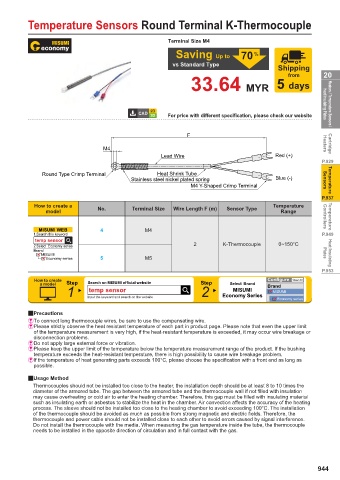

Page 947 - MiSUMi FA Mechanical Components Economy Series

Temperature Sensors Round Terminal K-Thermocouple

Terminal Size M4

Saving Up to 70 %
vs Standard Type
Shipping
Shipping
from
from 20
8 daysdays
33.64 MYR 5

For price with different specification, please check our website Heat Insulating Plates Heaters / Temperature Sensors /

F

M4 Heaters Cartridge
Lead Wire Red (+)
P.929

Round Type Crimp Terminal Heat Shrink Tube
Stainless steel nickel plated spring Blue (-) Sensors Temperature
M4 Y-Shaped Crimp Terminal
P.937
How to create a Temperature
model No. Terminal Size Wire Length F (m) Sensor Type Range Controllers Temperature

MISUMI WEB 4 M4
1.Search this keyword P.949
temp sensor
2.Select Economy series 2 K-Thermocouple 0~150°C
Brand
MISUMI Plates Heat Insulating
Economy series 5 M5
P.953
How to create Search on MISUMI official website Configure Clear All
a model Step Step Select Brand Brand
1 temp sensor 2 MISUMI MISUMI
Economy Series
Input the keyword and search on the website
Economy series
2Precautions
& To connect long thermocouple wires, be sure to use the compensating wire.
& Please strictly observe the heat resistant temperature of each part in product page. Please note that even the upper limit
of the temperature measurement is very high, if the heat-resistant temperature is exceeded, it may occur wire breakage or
disconnection problems.
& Do not apply large external force or vibration.
& Please keep the upper limit of the temperature below the temperature measurement range of the product. If the bushing
temperature exceeds the heat-resistant temperature, there is high possibility to cause wire breakage problem.
& If the temperature of heat generating parts exceeds 100°C, please choose the specification with a front end as long as
possible.
2Usage Method
Thermocouples should not be installed too close to the heater, the installation depth should be at least 8 to 10 times the
diameter of the armored tube. The gap between the armored tube and the thermocouple wall if not fi lled with insulation
may cause overheating or cold air to enter the heating chamber. Therefore, this gap must be fi lled with insulating material
such as insulating earth or asbestos to stabilize the heat in the chamber. Air convection aff ects the accuracy of the heating
process. The sleeve should not be installed too close to the heating chamber to avoid exceeding 100°C. The installation
of the thermocouple should be avoided as much as possible from strong magnetic and electric fi elds. Therefore, the
thermocouple and power cable should not be installed close to each other to avoid errors caused by signal interference.
Do not install the thermocouple with the media. When measuring the gas temperature inside the tube, the thermocouple
needs to be installed in the opposite direction of circulation and in full contact with the gas.
