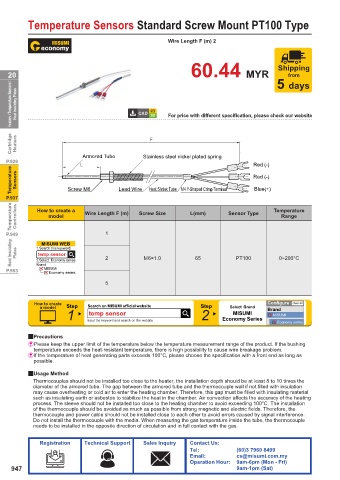

Page 950 - MiSUMi FA Mechanical Components Economy Series

Temperature Sensors Standard Screw Mount PT100 Type

Wire Length F (m) 2

Shipping
20 60.44 MYR 5 days
from
Heaters / Temperature Sensors / Heat Insulating Plates For price with different specification, please check our website

Cartridge Heaters F

Armored Tube Stainless steel nickel plated spring
P.929 L Red (-)
Temperature Sensors Red (-)

P.937 Screw M6 Lead Wire Heat Shrink Tube M4 Y-Shaped Crimp Terminal Blue(+)
Temperature Controllers How to create a Wire Length F (m) Screw Size L(mm) Sensor Type Temperature

model
Range
P.949 1
Heat Insulating Plates 1.Search this keyword 2 M6×1.0 65 PT100 0~200°C
MISUMI WEB
temp sensor
2.Select Economy series
P.953 Brand MISUMI
Economy series
5

How to create Configure Clear All
a model Step Search on MISUMI official website Step Select Brand Brand
1 temp sensor 2 MISUMI MISUMI
Economy Series
Input the keyword and search on the website
Economy series
2Precautions
& Please keep the upper limit of the temperature below the temperature measurement range of the product. If the bushing
temperature exceeds the heat-resistant temperature, there is high possibility to cause wire breakage problem.
& If the temperature of heat generating parts exceeds 100°C, please choose the specification with a front end as long as
possible.
2Usage Method
Thermocouples should not be installed too close to the heater, the installation depth should be at least 8 to 10 times the
diameter of the armored tube. The gap between the armored tube and the thermocouple wall if not fi lled with insulation
may cause overheating or cold air to enter the heating chamber. Therefore, this gap must be fi lled with insulating material
such as insulating earth or asbestos to stabilize the heat in the chamber. Air convection aff ects the accuracy of the heating
process. The sleeve should not be installed too close to the heating chamber to avoid exceeding 100°C. The installation
of the thermocouple should be avoided as much as possible from strong magnetic and electric fi elds. Therefore, the
thermocouple and power cable should not be installed close to each other to avoid errors caused by signal interference.
Do not install the thermocouple with the media. When measuring the gas temperature inside the tube, the thermocouple
needs to be installed in the opposite direction of circulation and in full contact with the gas.
